4042 DIP Quad D-Type Latch

4042 DIP Quad D-Type Latch

The 4042 DIP Quad D-Type Latch is a versatile CMOS integrated circuit. It stores four bits of data. Each bit uses a D-type latch. This IC is perfect for digital projects. It works with microcontrollers and logic systems. Engineers and hobbyists love its reliability.

This latch IC offers transparent and latched modes. You control the data flow with ease. The 4042 operates from 3V to 15V. It has low power consumption. Use it for temporary data storage. It simplifies complex circuit designs.

The DIP Quad D-Type Latch holds data on command. In transparent mode, output follows input. In latched mode, it locks the data. This dual action is very useful. It prevents data loss during clock changes. The DIP Quad D-Type Latch also has a strobe input. This input controls when data is captured. You can synchronize multiple latches together. The IC uses CMOS technology for low heat. It runs cool even in tight spaces. This makes it great for portable gear. The DIP Quad D-Type Latch is easy to interface. It connects directly to TTL logic levels. No extra level shifting is needed. This saves board space and cost. The design is robust and tested. It works reliably for years. Electra Store ensures top quality.

Key Features

• Four independent D-type latches in a single DIP-16 package.
• Wide supply voltage range from 3V to 15V for flexibility.
• Low power consumption ideal for battery-powered devices.
• Transparent and latched modes for versatile data control.
• High noise immunity ensures stable operation in noisy environments.
• Standard DIP-16 footprint for easy breadboarding and PCB design.

What's Included

• One 4042 DIP Quad D-Type Latch IC.
• Anti-static foam packaging for safe delivery.

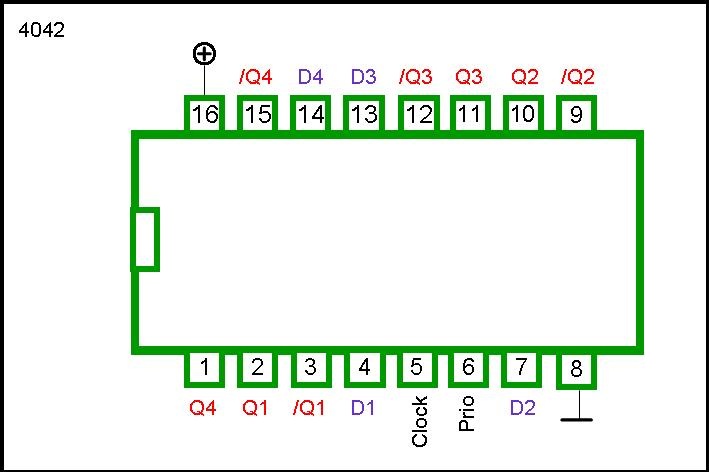

• Product datasheet with pinout and specs.
• Electra Store warranty card for peace of mind.

Use Cases

The DIP Quad D-Type Latch suits many projects. Use it in data registers, memory buffers, or state machines. It works well in educational kits and industrial controls. Builders of digital clocks or counters find it useful. This latch is a staple for any electronics workbench. Typical buyers include students, makers, and engineers. Schools use it for teaching logic design. Hobbyists add it to custom synthesizers. Professionals use it in test equipment. The DIP Quad D-Type Latch is also good for robotics. It stores sensor data temporarily. This helps in decision making. Anyone building a CPU or ALU needs it. It is a core building block. The DIP Quad D-Type Latch is a smart choice.

Ready to upgrade your circuit? Order the 4042 DIP Quad D-Type Latch from Electra Store now. Enjoy fast shipping and reliable components. Start your next project with confidence! This part is in stock and ready to ship. Don't wait to build something great. Click to order today and get your DIP Quad D-Type Latch delivered fast. Your projects deserve the best parts. Electra Store delivers quality every time.
