4532 DIP 8-BIT PRIORITY ENCODER

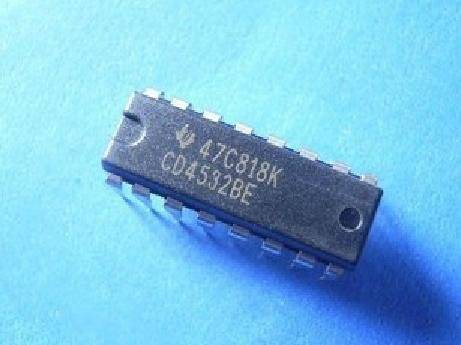

4532 DIP 8-Bit Priority Encoder

The 8-bit priority encoder is a key component for digital systems. This 4532 DIP IC handles multiple inputs efficiently. It prioritizes the highest-order active input. Engineers and hobbyists use it for reliable encoding. It is perfect for your next project.

This encoder converts 8 input lines to a 3-bit binary code. It ensures the highest priority input is encoded first. The DIP package makes it easy to use on breadboards. It works with standard logic levels. You get fast and accurate results every time.

This 8-bit priority encoder simplifies complex digital tasks. It scans eight input signals at once. The chip then outputs a binary number for the highest priority line. This process happens in nanoseconds. It reduces the need for extra logic gates. The 4532 model includes an enable input for cascading. You can chain multiple chips for more inputs. It also has a group signal output. This tells you if any input is active. The encoder handles both high and low priority levels. It works with sensors, switches, and other digital sources. The design ensures minimal signal delay. You get clean, reliable data every cycle.

Key Features

• 8-bit priority encoding with active-high inputs

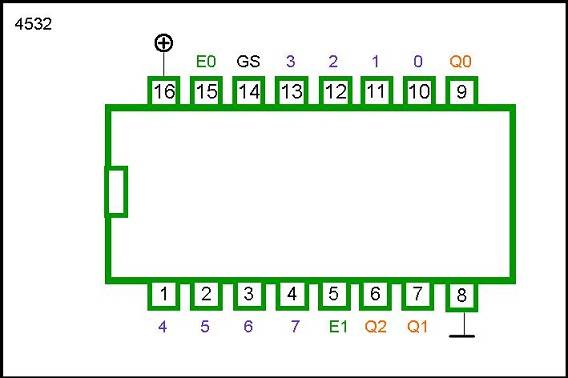

• DIP-16 package for easy prototyping and integration
• Low power consumption for energy-efficient designs
• Wide operating voltage range from 3V to 18V
• High noise immunity for stable performance
• Compatible with TTL and CMOS logic families

Use Cases

This 8-bit priority encoder is ideal for microcontroller projects. Use it in data routing, interrupt handling, or input expansion. It works well in educational kits and industrial controls. Hobbyists love it for robotics and automation systems. Typical buyers include electronics students. They use it to learn digital logic. Engineers add it to PCB designs for priority management. Makers use it in home automation projects. It helps with sensor arrays and button panels. The 8-bit priority encoder also fits in retro computing builds. It works with old-school CPUs and memory systems. Anyone needing fast input sorting will benefit.

Order your 4532 DIP 8-bit priority encoder today. Electra Store offers fast shipping and great support. Upgrade your projects with this reliable encoder. Get yours now! This 8-bit priority encoder will boost your designs. It saves time and reduces circuit complexity. Don't wait to improve your work. Click to order and start building.
