7416 DIP Hex Inverter Buffer / Driver With 15V Open Collector Outputs

7416 DIP Hex Inverter Buffer Driver With 15V Open Collector Outputs

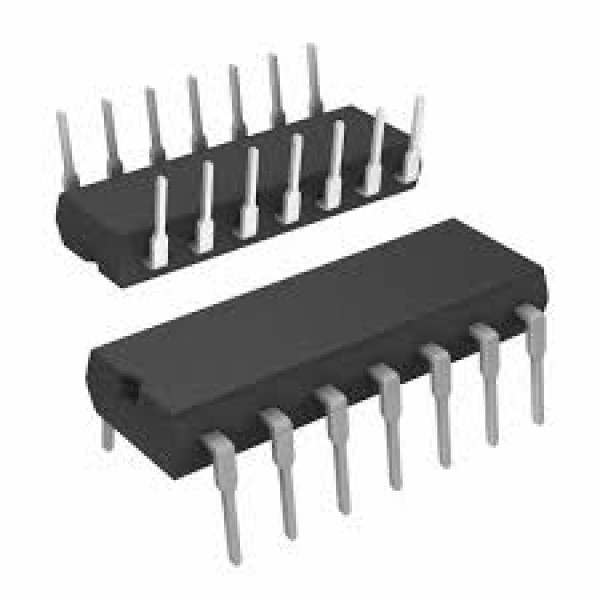

The 7416 DIP Hex Inverter Buffer Driver is a versatile logic IC. It features six independent inverters with open collector outputs. Each output can handle up to 15V. This makes it ideal for driving relays, LEDs, or other high-voltage loads. It is part of the trusted 74 series family. Engineers and hobbyists rely on it for robust performance.

This Hex Inverter Buffer Driver works with standard TTL logic levels. It inverts input signals while providing high current drive. The open collector outputs allow wired-OR connections. You can easily interface with different voltage systems. It is a must-have for your electronics toolkit. The Hex Inverter Buffer Driver excels in mixed-voltage environments. It bridges low-voltage logic to higher voltage peripherals. Each of its six buffers can sink up to 40 mA. This ensures reliable switching for demanding loads. The open collector design also enables bus sharing. Multiple outputs connect to a single pull-up resistor. This simplifies complex circuit designs. The 7416 DIP Hex Inverter Buffer Driver operates from 0°C to 70°C. It works well in both lab and field conditions. Its DIP-14 package fits standard breadboards and PCBs. You can prototype quickly and move to production easily.

Key Features

• Six independent inverters with open collector outputs rated for 15V
• High output sink current of 40 mA per channel
• Standard DIP-14 package for easy breadboarding and PCB use
• Compatible with 5V TTL logic levels
• Wide operating temperature range from 0°C to 70°C
• Low power consumption typical of 74 series ICs

What's Included

• One 7416 DIP Hex Inverter Buffer Driver IC
• Anti-static packaging for safe delivery
• Product datasheet with pinout and specifications
• Electra Store quality guarantee

Use Cases

Use this Hex Inverter Buffer Driver in digital logic circuits. It is great for driving lamps, solenoids, or relays. It also works well in level shifting and signal inversion. Hobbyists use it in Arduino and Raspberry Pi projects. It is a reliable choice for industrial control systems. Typical buyers include electronics engineers and technicians. They need to interface 5V logic with 12V or 15V systems. Students and makers also buy it for educational kits. It helps them learn about open collector logic. The Hex Inverter Buffer Driver is perfect for prototyping. It simplifies designs that require high-voltage drive. You can use it in alarm systems, motor controllers, and display drivers. It is a staple for any electronics workbench.

Order your 7416 DIP Hex Inverter Buffer Driver today. It is in stock and ready to ship. Electra Store offers fast delivery and quality service. Upgrade your project with this essential component now. Do not wait to get your Hex Inverter Buffer Driver. It will solve your signal inversion and drive needs. Click add to cart and secure your part today.
