74166 DIP Parallel-Load 8-Bit Shift Register

74166 DIP Parallel-Load 8-Bit Shift Register

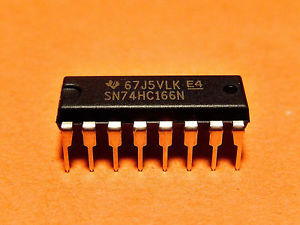

The 74166 DIP 8-bit shift register is a versatile parallel-load IC. It stores and shifts data in digital circuits. This chip is ideal for hobbyists and engineers. It works with TTL logic levels. Use it in counters, buffers, and data transfer systems.

This 8-bit shift register loads data in parallel. It shifts data serially on each clock pulse. The DIP package fits standard breadboards and PCBs. It operates from 0°C to 70°C. The IC requires a 5V supply. It has a typical propagation delay of 25 ns.

The 8-bit shift register accepts eight bits at once. It then moves them out one bit per clock cycle. This makes it perfect for serial communication. You can also use it to expand output pins. The parallel load feature saves time. You do not need to shift in each bit. The master reset clears all data instantly. This helps in error recovery and system resets. The 8-bit shift register works with other TTL chips. It connects easily to microcontrollers and sensors. The 25 ns delay keeps your system fast. The 0°C to 70°C range covers most indoor uses. The DIP-16 package is easy to handle. You can solder it or use a socket. This 8-bit shift register is a workhorse for digital design.

Key Features

• 8-bit parallel-load shift register in a DIP-16 package
• TTL-compatible inputs and outputs for easy integration
• Asynchronous master reset for immediate clear function
• Wide operating temperature range from 0°C to 70°C
• Low power consumption typical of 74 series logic
• Direct replacement for standard 74166 ICs

Use Cases

This 8-bit shift register works well in data acquisition systems. It is great for LED displays and serial communication projects. Students use it in digital logic labs. Engineers choose it for microcontroller expansion. The parallel load feature simplifies data entry. Hobbyists use it in robotics and automation. It also fits in test equipment and signal processing. Anyone building digital circuits can benefit. The 8-bit shift register is a core building block. It helps you learn shift register concepts. It also solves real-world design problems. The chip is reliable and easy to source.

Order your 74166 DIP 8-bit shift register today. Electra Store offers fast shipping and quality parts. Upgrade your project with this reliable IC. Buy now and get building! This 8-bit shift register will boost your design. Do not wait to start your next project. Click to order and receive it soon. Your circuits will work better with this chip.
