74194 DIP 4-Bit Bidirectional Universal Shift Register

74194 DIP 4-Bit Bidirectional Universal Shift Register

The 74194 shift register is a versatile 4-bit bidirectional universal shift register. It is perfect for digital electronics projects. This IC can shift data left or right. It also supports parallel loading. Hobbyists and engineers love it for its flexibility.

This shift register works with TTL logic. It operates from 0 to 70 degrees Celsius. You can use it in counters, converters, and data storage. It comes in a DIP package. That makes it easy to use on breadboards.

The 74194 shift register offers four distinct modes of operation. You can shift data left or right serially. You can also load data in parallel. A clear function resets all outputs to zero. This makes the 74194 shift register very adaptable. It handles many digital tasks with ease. The IC uses a master clock for timing. All operations sync with this clock. This ensures reliable data movement. The 74194 shift register is a core component in many designs. It simplifies complex data routing. You can build efficient systems with it.

Key Features

• 4-bit bidirectional shifting with parallel load capability
• Wide operating voltage range from 4.75V to 5.25V
• High-speed operation up to 30 MHz typical
• Standard DIP-16 package for easy prototyping
• Compatible with 74 series logic families
• Low power consumption for battery-powered projects

What's Included

• One 74194 shift register IC in DIP-16 package
• Protective anti-static foam for safe storage

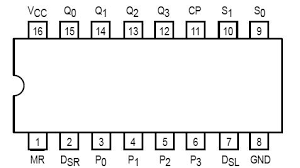

• Datasheet with pinout and example circuits
• Electra Store 5-year warranty card

Use Cases

Use the 74194 in data serializers and deserializers. It works great in LED displays and counters. Students use it in lab experiments. Engineers apply it in communication systems. It is a must-have for any digital logic kit. This IC is ideal for robotics projects. It helps control shift registers for sensors. Hobbyists build shift-based memory with it. The 74194 shift register suits educational kits too. Teachers use it to explain digital logic. Beginners learn shifting and loading concepts. Professionals rely on it for prototyping. It fits in many embedded systems.

Who It's For

This product is for electronics enthusiasts. It helps students learning digital design. Engineers use it in development work. Makers add it to custom circuits. Anyone building TTL projects needs it. The 74194 shift register is a staple part. It supports both simple and advanced builds.

Order your 74194 shift register today from Electra Store. We offer fast shipping and a 5-year warranty. Get this essential IC for your next project. Click add to cart now! Don't wait. Stock up on this versatile chip. It will boost your digital designs. Order now for quick delivery.
