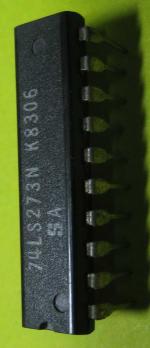

74273 DIP 8-Bit Register With Reset

74273 DIP 8-Bit Register with Reset

The 8-Bit Register with Reset is a high-performance DIP IC from the 74 Series. It stores and transfers 8-bit data reliably. This chip is perfect for hobbyists and engineers. It works in many digital circuits. You can use it in counters, buffers, and more. The reset function clears data instantly. This ensures your projects run smoothly.

This 8-Bit Register with Reset uses eight D-type flip-flops. Each flip-flop stores one bit. The common clock line updates all bits at once. The reset pin sets all outputs to zero. This makes it easy to control data flow. The DIP package fits standard breadboards and PCBs. It operates at 5V, making it compatible with TTL logic.

Beyond basic storage, the 8-Bit Register with Reset handles parallel data with ease. It captures a full byte on each clock pulse. The asynchronous reset works without waiting for a clock. This gives you instant control over your system. You can cascade multiple chips for wider data buses. The 8-Bit Register with Reset also supports daisy-chaining for larger designs. Its robust design minimizes signal noise. This ensures stable operation in complex circuits. The chip is a workhorse for digital logic projects.

Key Features

• Eight D-type flip-flops with a common clock and reset.
• DIP-20 package for easy prototyping and soldering.
• Operates at 5V with TTL-compatible inputs and outputs.
• Asynchronous reset clears all outputs to low state.
• High-speed operation up to 30 MHz typical.
• Low power consumption for battery-powered projects.

What's Included

• One 74273 DIP 8-Bit Register with Reset IC.
• Industry-standard DIP-20 form factor.
• RoHS compliant and lead-free.
• Bulk packaging for hobbyist or bulk orders.

Use Cases

This 8-Bit Register with Reset is ideal for data storage in microcontrollers. Use it in memory buffers, shift registers, or state machines. It works well in educational kits and industrial controls. Hobbyists love it for building CPUs or digital clocks. Engineers rely on it for reliable data handling. Typical buyers include students learning digital logic. They also include makers building retro computers. Professionals use it in test equipment and automation. The 8-Bit Register with Reset fits any project needing stable byte storage.

Who It's For

This chip suits beginners and experts alike. Students use it in labs to understand flip-flops. Engineers integrate it into larger systems. It is perfect for prototyping on breadboards. The 8-Bit Register with Reset also works in production PCBs. Anyone building digital circuits will find it useful. It is a staple for 74 Series collections.

Order your 8-Bit Register with Reset today from Electra Store. Get fast shipping and top-quality components. Upgrade your projects with this essential 74 Series IC. Click add to cart now! Don't wait to enhance your designs. Stock up on this reliable chip for future builds. Your next project needs the 8-Bit Register with Reset. Buy it now and start building!
