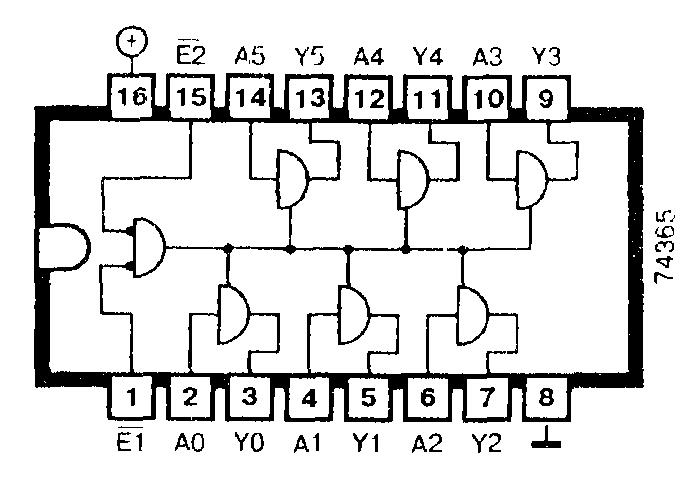

74365 DIP Hex Buffer With Noninverted Three-State Outputs

74365 DIP Hex Buffer With Noninverted Three-State Outputs

The 74365 DIP Hex Buffer is a high-performance logic IC. It features six noninverted three-state outputs. This buffer is perfect for driving bus lines or capacitive loads. It works well in digital circuits and microprocessor systems. Engineers and hobbyists trust this component for reliable signal buffering.

This hex buffer operates with a wide voltage range. It ensures clean signal transmission without inversion. The three-state outputs allow multiple devices to share a common bus. You can easily enable or disable outputs with the control pins. This design reduces power consumption and prevents data conflicts. The DIP Hex Buffer provides strong drive capability. It can source or sink up to 24 milliamps per output. This makes it ideal for driving long traces or multiple inputs. The buffer also includes built-in hysteresis for noise filtering. This ensures stable switching even with slow input signals. You can use it to isolate sensitive logic from heavy loads. The DIP Hex Buffer simplifies complex wiring in dense boards. It maintains signal integrity across different voltage domains. This component is a workhorse for digital design.

Key Features

• Six noninverted three-state outputs for flexible bus driving
• Wide operating voltage range from 4.75V to 5.25V
• High noise immunity ensures stable performance in noisy environments
• Low power consumption extends battery life in portable devices
• Standard DIP-16 package fits common breadboards and sockets
• Compatible with TTL and CMOS logic families for easy integration

Use Cases

Use this DIP Hex Buffer in microcontroller projects, data communication systems, and industrial controls. It is ideal for buffering address or data lines. Hobbyists often use it in Arduino or Raspberry Pi expansions. Engineers rely on it for prototyping and production designs. This DIP Hex Buffer also suits memory interface circuits. It works well in clock distribution networks. System integrators use it to drive multiple peripheral chips. The DIP Hex Buffer is a top choice for educational labs. Students learn bus arbitration and signal conditioning with it. It fits retro computing projects too. The robust design handles repeated breadboard use. This DIP Hex Buffer is a staple in any digital toolkit.

Order the 74365 DIP Hex Buffer today. It delivers reliable performance for your next project. Fast shipping and quality assurance from Electra Store. Upgrade your circuit with this essential component now. The DIP Hex Buffer will solve your signal driving needs. Do not delay your build. Click to add this DIP Hex Buffer to your cart. Get it today and start building with confidence.
