AC Voltage Sensor Module ZMPT101B

AC Voltage Sensor Module ZMPT101B

The AC Voltage Sensor Module ZMPT101B is a high-precision sensor. It measures AC voltage up to 250V. This module is perfect for hobbyists and engineers. It works with Arduino and other microcontrollers. Get accurate readings every time.

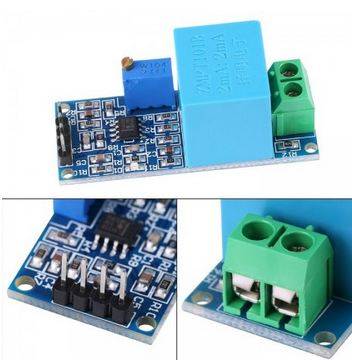

This module uses a ZMPT101B transformer and a high-precision op-amp. It provides an analog output. You can adjust the output easily. It ensures good consistency for voltage and power measurement. It is simple to integrate into your projects.

How the AC Voltage Sensor Works

The AC Voltage Sensor Module ZMPT101B converts high AC voltage into a safe low-level signal. It uses a precision voltage transformer for isolation. This keeps your microcontroller safe. The onboard op-amp then amplifies the signal. You get a clean analog output. This output is proportional to the input voltage. You can calibrate it with a simple potentiometer. The module works with 5V or 3.3V systems. It is very reliable for continuous monitoring. The AC Voltage Sensor is ideal for long-term projects. It handles fluctuations well. You can trust its readings every time.

Key Features

• Measures AC voltage up to 250V with high accuracy
• Rated input current is 2mA for safe operation
• Onboard micro-precision voltage transformer for reliable performance
• Analog output can be adjusted to match your needs

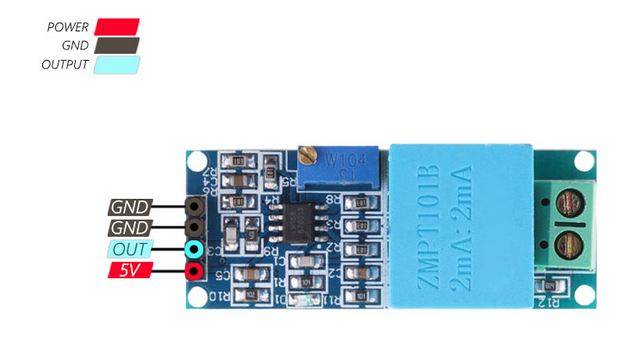

• Active output signal for easy reading by microcontrollers
• Compact design fits into small enclosures

What's Included

• One AC Voltage Sensor Module ZMPT101B
• Pin headers for easy connection
• User guide with wiring diagram
• No extra components needed

Use Cases

Use this AC Voltage Sensor for home automation projects. Monitor power consumption in real time. It is great for smart energy meters. Engineers use it for industrial control systems. It is also popular in educational labs. Hobbyists love it for DIY solar projects. It works well for battery chargers. You can monitor mains voltage safely. The AC Voltage Sensor is perfect for data logging. It helps in predictive maintenance. Students use it to learn about power systems. It is a versatile tool for many applications.

Who It's For

This product is for makers and professionals. It suits anyone building smart devices. Electricians use it for testing. Developers integrate it into IoT systems. It is easy for beginners too. The AC Voltage Sensor helps you learn electronics. It is a must-have for any workbench.

Order the AC Voltage Sensor Module ZMPT101B today. It is in stock at Electra Store. Get fast shipping and excellent support. Upgrade your projects with precision voltage sensing now. Don't wait to improve your builds. Click add to cart and get yours today. Your next project needs this reliable sensor.
