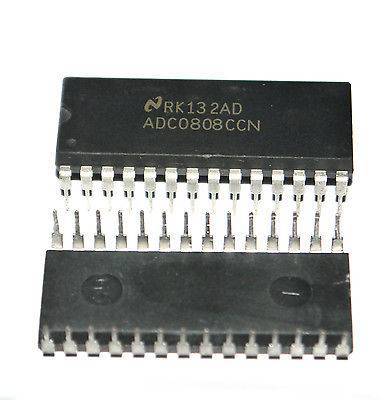

ADC0808LCN DIP 8-BIT A/D CONVERTERS WITH 8-CHANNEL MULTIPLEXER

ADC0808LCN A/D Converter 8-Bit with 8-Channel Multiplexer

The ADC0808LCN A/D Converter is a high-performance 8-bit analog-to-digital converter. It features an 8-channel multiplexer. This makes it ideal for reading multiple analog signals. It is perfect for hobbyists and engineers. You can use it in microcontrollers and data acquisition systems.

This converter uses a successive approximation technique. It delivers fast and accurate conversions. The 8-channel multiplexer lets you switch between inputs easily. You get reliable digital output for each analog signal. It works with a single 5V supply. This simplifies your circuit design. The ADC0808LCN A/D Converter handles up to eight analog inputs at once. Each input is sampled and converted in sequence. The internal clock runs at 640 kHz for speed. Output data appears as an 8-bit binary code. This code represents the analog voltage level. You can read it directly with a microcontroller. The chip includes a latch for stable output. This prevents data loss during reading. It is a robust solution for many projects. The ADC0808LCN A/D Converter is easy to integrate. It works with common logic families. You do not need complex external components. Just connect power, ground, and your signals. Then read the digital output. This simplicity saves time and effort. It is a trusted part in electronics design.

Key Features

• 8-bit resolution with ±1 LSB accuracy for precise measurements
• 8-channel multiplexer allows up to eight analog inputs
• Fast conversion time of 100 microseconds at 640 kHz clock
• Easy interface with microcontrollers via latched three-state outputs
• Operates on a single 5V DC power supply for convenience
• DIP-28 package for easy breadboarding and prototyping

What's Included

• One ADC0808LCN A/D Converter chip in DIP-28 package
• No additional hardware or documentation included
• Compatible with standard breadboards and sockets

Use Cases

Use the ADC0808LCN A/D Converter in temperature sensing, light detection, and motor control projects. It is great for Arduino and Raspberry Pi systems. You can also use it in industrial automation and data logging. This chip handles multiple sensors without extra hardware. Typical buyers include electronics hobbyists, students, and engineers. They work on sensor arrays, data acquisition, and control systems. The ADC0808LCN A/D Converter is also popular in educational kits. It teaches analog-to-digital conversion concepts. Professionals use it in prototype testing. It fits in battery-powered devices due to low power draw. The 8-channel input reduces component count. This saves board space and cost. It is a versatile choice for any project needing analog input.

Order the ADC0808LCN A/D Converter today from Electra Store. It is a reliable choice for your next project. Get fast shipping and great support. Upgrade your designs with this versatile converter now. Do not wait. Add the ADC0808LCN A/D Converter to your cart. Start building smarter circuits today.
