Smart210 is a highly integrated, high-performance Cortex-A8 core board designed, manufactured and distributed by the friendly arm of Guangzhou. Both use Samsung S5PV210 as the main processor, which can run at up to 1GHz. The S5PV210 integrates PowerVR SGX540 high-performance graphics engine, supports smooth 3D graphics operation, and can play 1080P large-size HD videos.

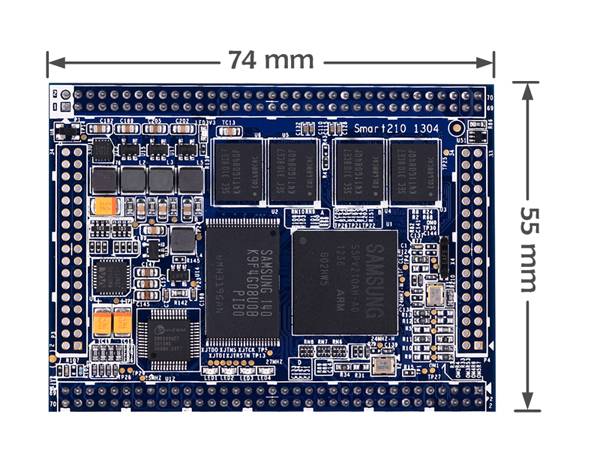

   The Smart210 core board uses 2.0mm pitch double-row pins (P1, P2, P3, P4) with a size of 74x55mm, which leads to a total of 208Pin pins. Among them, the P1 and P2 pin headers are standard welding, which already contains most of the commonly used functions; P3 and P4 air welding, which is convenient for users to expand and use. The Smart210 board integrates a network card and a sound card chip, which is very suitable for enterprise users to carry out rapid product design or project development. The core board comes standard with 512M memory and 512M high-performance SLC flash memory (another 1GB optional).

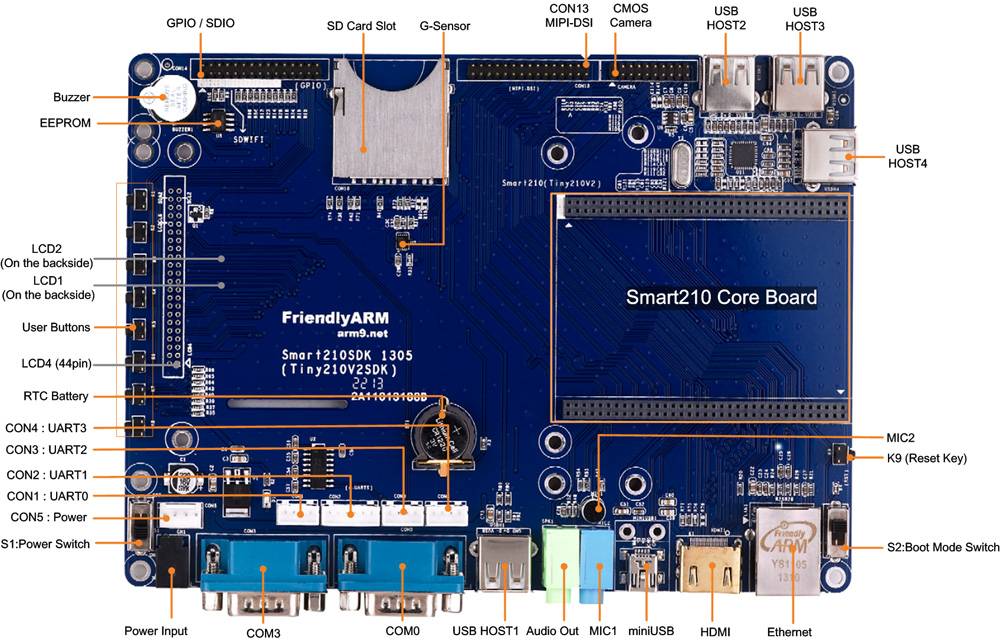

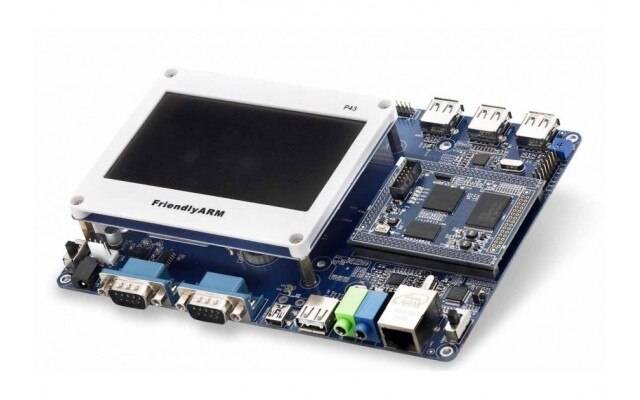

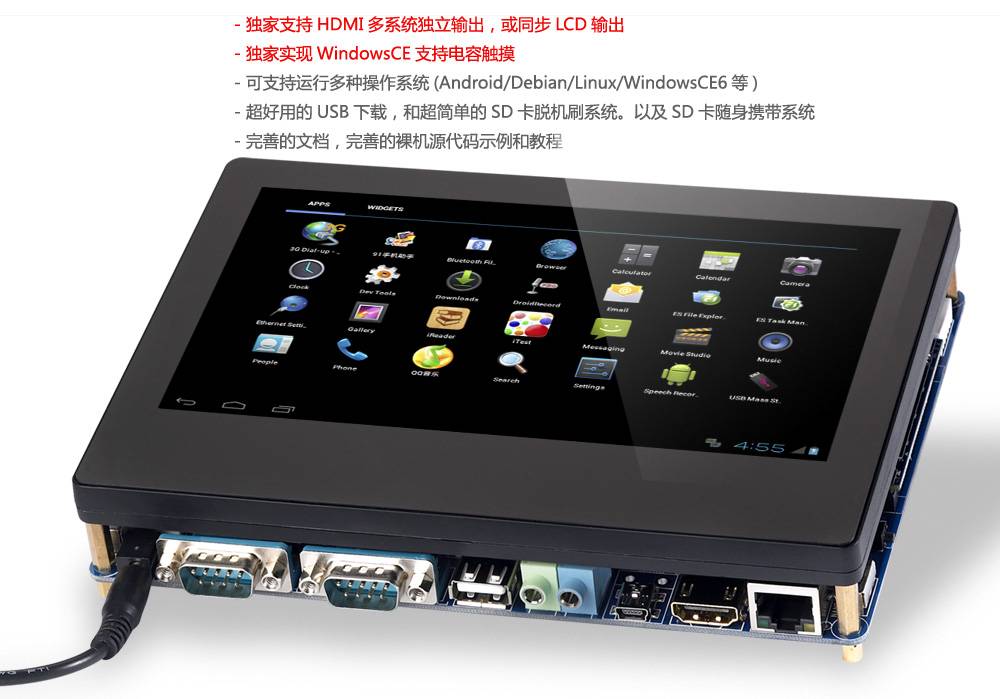

   Smart210SDK is a reference design baseboard for Smart210. It comes with a variety of common standard interfaces, such as HDMI output, USB Host, SD card, DB9 serial port, RJ-45 Ethernet port, audio input and output ports, etc., and some on-board resources. Test devices such as EEPROM, buzzer, buttons, GPIO port, SDIO port, etc., so that users can comprehensively evaluate and use the core board. In terms of layout, we try to consider that LCD modules of common sizes can be fixed on the backplane, such as 3.5 ", 4.3", 5 ", 7" LCD, etc., so that users will not stir various wires together during use. , And increase the portability of the development kit.

   We also fully took advantage of the 210 support for SD card booting, and carefully developed a powerful Superboot-210, which does not require a computer connection, as long as the system ROM is copied to the SD card (supporting high-speed large-capacity cards up to 32G) You can quickly and easily install a variety of embedded systems (WindowsCE6 / Linux / Android / Ubuntu / uCos2 or bare metal programs, etc.); this is very suitable for enterprise users for mass production and field upgrades to update the system !

   Keeping pace with the development of the times, we have also developed a new USB download tool MiniTools using cross-platform Qt4. With Superboot, users can brush the board like a mobile phone. It uses the world's universal Fastboot low-level driver, so you can take almost All Windows systems (including 32 / bit-bit machines), and can support various distributions of Linux, such as Fedora, Ubuntu and other systems.
   With MiniTools, no serial connection is required, as long as the USB, users can select single or multiple system image files, download and flash in one go, and truly realize one-click flashing; In addition, MiniTools also supports download to memory operation and one-click quick start function Therefore, MiniTools is also very suitable for developers to quickly debug and develop !
