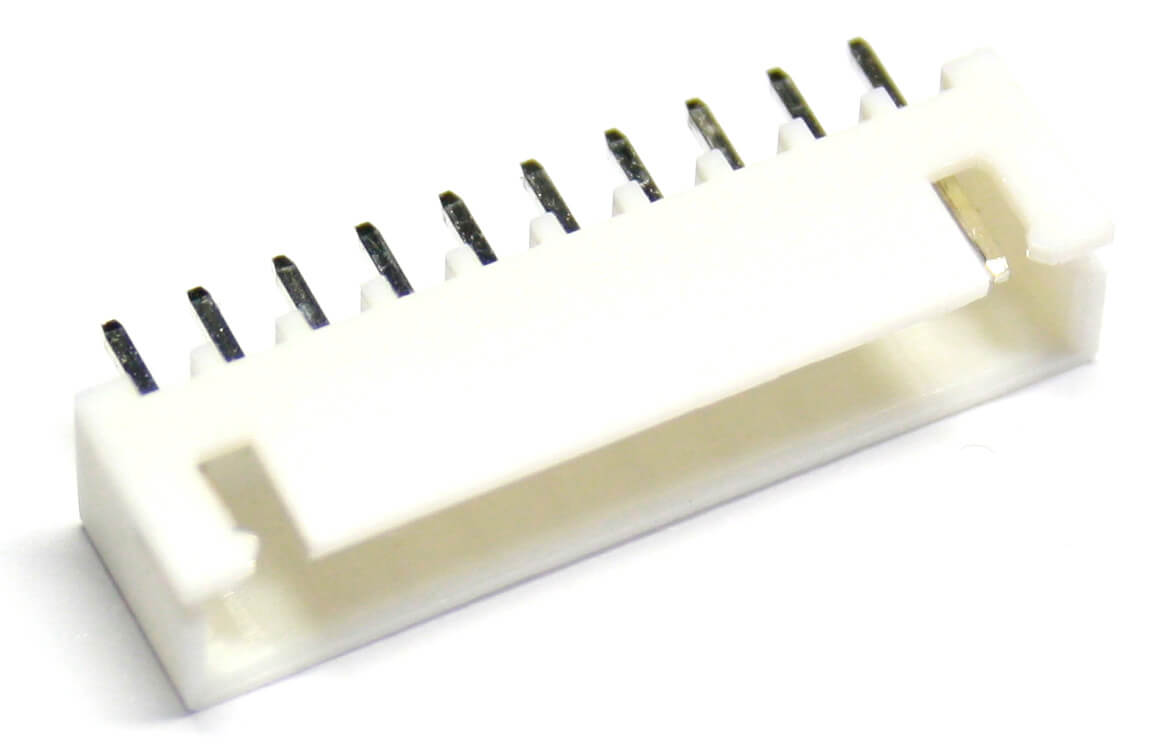

JST XH Data Terminal Straight PCB Solder Male Connector 10 pin

🔑 Key Features:

✔ JST XH Standard – 2.54mm pitch for compatibility with XH housings/cables ✔ 10-Pin Configuration – High-density solution for multi-circuit connections ✔ Through-Hole PCB Mount – Strong solder joints for vibration resistance ✔ Tin-Plated Brass Contacts – Low resistance (≤20mΩ) and oxidation-resistant ✔ PA66 Housing (UL94 V-0) – Flame-retardant (-40°C to +105°C operating range) ✔ Polarized Design – Keyed slot prevents reverse mating

📌 Applications:

• Industrial Control Boards – PLC I/O interfaces

• Power Distribution Systems – Multi-circuit power rails

• 3D Printer Mainboards – Extruder/stepper motor connections

• LED Matrix Panels – High-pin-count signal transmission

• Test Equipment – Multi-channel measurement interfaces

📦 Package Includes:

• 1 × JST XH 10-Pin Male Connector (Straight PCB Solder Type)

• (Optional) Matching crimp terminals available

⚙ Technical Specifications:

🔧 Installation Notes:

1. PCB Layout Guidance:

   • Maintain ≥1.5mm clearance between adjacent traces

   • Recommend 0.8-1.0mm thick FR4 PCB

2. Soldering Process:

   • 260°C max (2-3 seconds contact time)

   • Use lead-free solder (Sn96.5/Ag3/Cu0.5 recommended)

Compliance: RoHS & REACH compliant (certificate available upon request)
