LM339 DIP SINGLE SUPPLY QUAD COMPARATOR

LM339 DIP SINGLE SUPPLY QUAD COMPARATOR

The LM339 quad comparator is a versatile and reliable integrated circuit designed for various applications. It operates from a single power supply, making it ideal for battery-powered devices. This quad voltage comparator features four independent comparators, allowing for efficient comparisons in electronic circuits.

The LM339 quad comparator excels in providing precise voltage comparisons, making it suitable for a wide range of electronic applications. With its low input offset voltage, the LM339 ensures that comparisons are not only accurate but also consistent over time. The open-collector outputs allow for flexible configurations, enabling wired-AND connections and level shifting. This is particularly useful in digital systems where multiple outputs need to be combined. Additionally, the LM339 is designed for fast response times, making it perfect for timing applications and threshold detection, where quick and reliable performance is essential.

Key Features

• Operates on a single supply voltage of 2V to 36V

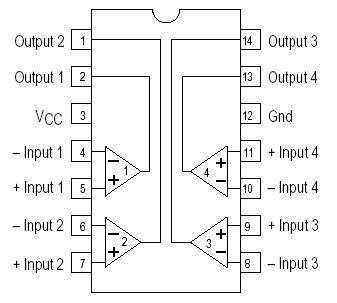

• Four independent voltage comparators in one package
• Open-collector outputs for easy wired-AND logic
• Low power consumption for efficient operation
• Fast response time for accurate timing detection
• 14-pin DIP package for easy integration

Use Cases

The LM339 quad comparator is commonly used in various electronic projects. It is ideal for applications requiring precise voltage comparisons, such as battery monitoring, signal conditioning, and level detection. Engineers, hobbyists, and students alike will find this component invaluable for their designs. Whether you are building a simple circuit or a complex system, the LM339 quad comparator provides the reliability and performance needed to ensure success.

Don’t miss out on the LM339 quad comparator. Its reliability and versatility make it a must-have for your next project. Order today and experience the benefits of this exceptional component in your designs!
