NE555 Adjustable Frequency Pulse Generator Module

NE555 Adjustable Frequency Pulse Generator Module

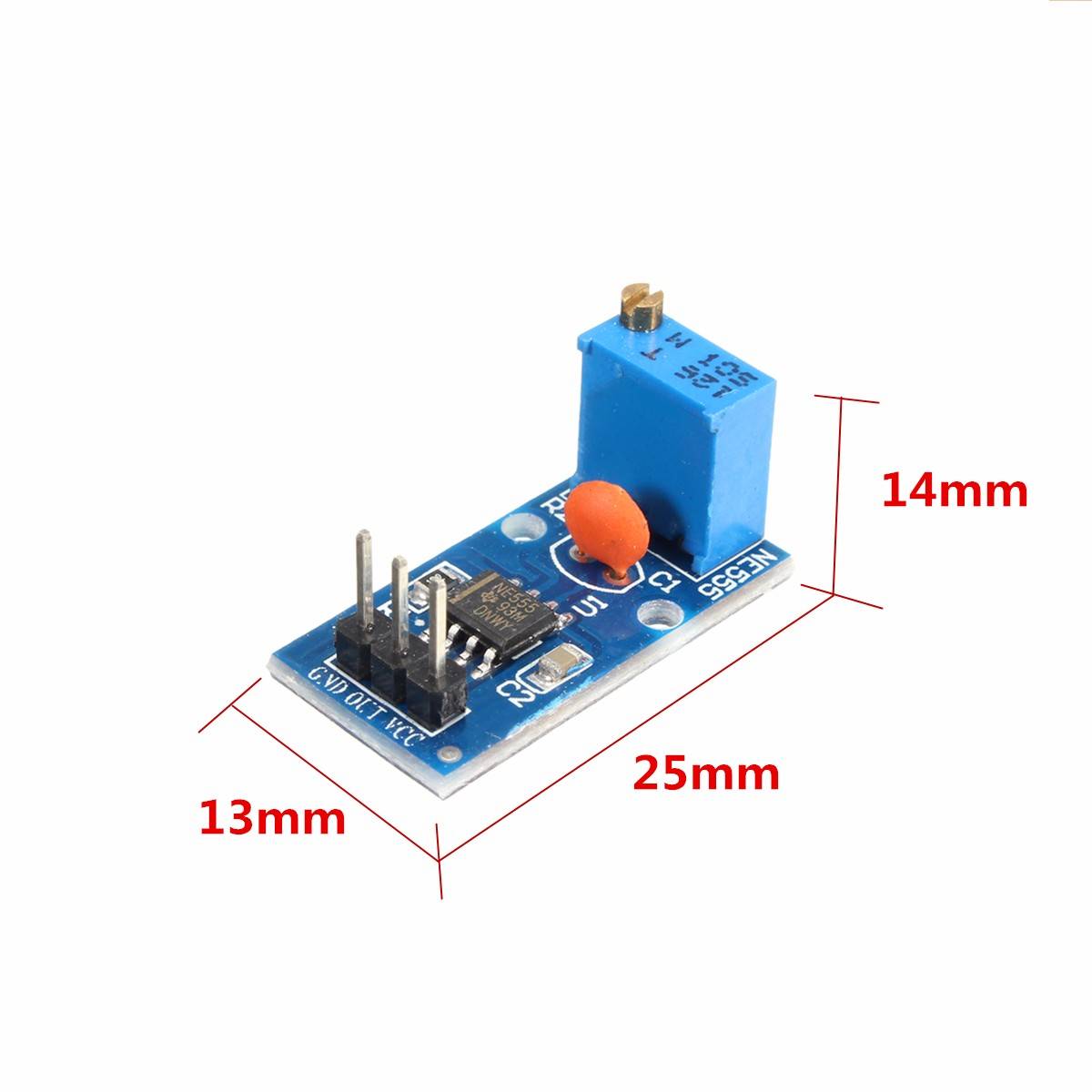

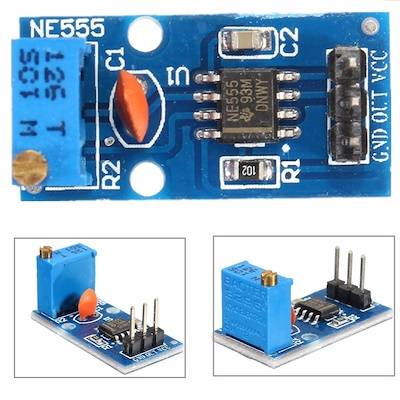

The NE555 pulse generator module is a versatile tool for electronics enthusiasts. It generates adjustable square waves and PWM signals. Use it for motor control, timing circuits, and more. This module works with 5V to 15V DC. It is breadboard-friendly and easy to use.

You can adjust frequency from 1Hz to 500kHz. The duty cycle ranges from 5% to 95%. This gives you precise control over your signals. The classic NE555 timer IC ensures reliable performance. It supports TTL and CMOS logic levels.

This NE555 pulse generator module does more than just produce signals. It lets you fine-tune your projects with ease. The onboard potentiometer makes duty cycle adjustments simple. You can change the frequency by swapping resistors and capacitors. This flexibility is perfect for prototyping. The module outputs clean, stable waveforms every time. It works well with microcontrollers like Arduino and Raspberry Pi. You can use it to test circuits or drive loads directly. The compact design saves space on your workbench. It is a reliable tool for both beginners and experts.

Key Features

• Adjustable frequency range from 1Hz to 500kHz using RC components
• Duty cycle control from 5% to 95% via a built-in potentiometer
• Built with the reliable NE555 timer IC for stable output
• Wide voltage range of 5V to 15V DC, compatible with TTL and CMOS logic
• Multiple output modes including square wave and PWM signals
• Compact PCB with standard 0.1-inch pin spacing for breadboard use

Use Cases

This NE555 pulse generator module is ideal for many projects. Hobbyists use it for PWM motor speed control. Students rely on it for learning electronics basics. It works great in LED dimmers and tone generators. Robotics enthusiasts use it for timing and automation. Engineers use it for testing and prototyping circuits. Anyone who needs precise signal control will benefit from this module.

Order your NE555 pulse generator module today. It is a must-have for your electronics toolkit. Get precise signal control for your next project. Fast shipping and easy returns included. Start building better circuits right now.
