Omron DPDT Non-Latching Relay PCB Mount 12V dc Coil 5A

Omron DPDT Non-Latching Relay PCB Mount 12V dc Coil 5A

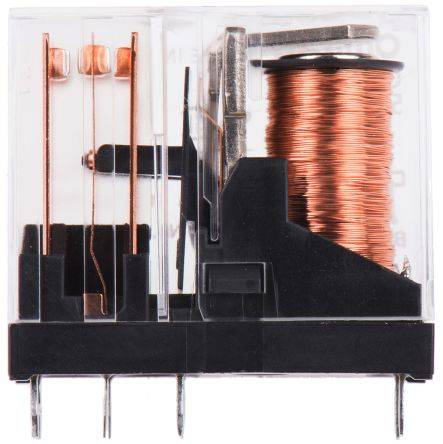

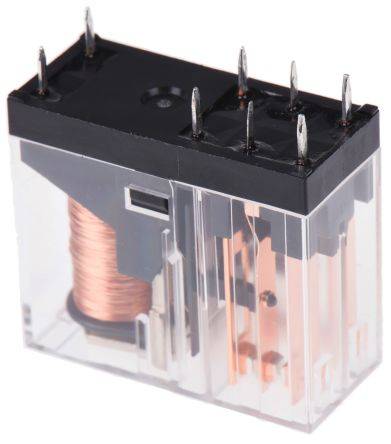

The 12V DPDT relay from Omron is a non-latching relay designed for PCB mounting. It handles up to 5A switching current. This relay is perfect for power control in industrial and DIY projects. Its compact size saves board space.

This 12V DPDT relay switches two independent circuits at the same time. It uses a 12V dc coil with 47 Ω resistance. The coil draws low current for efficient operation. The relay stays in its set state without power. This saves energy in battery-powered systems. The silver contact material ensures long life. Operating temperature ranges from -40°C to 70°C. It delivers reliable performance in harsh environments. The relay is built for repeated switching cycles. It works well in high-vibration settings. The PCB mount design allows secure soldering. You can integrate it into complex boards easily. This 12V DPDT relay is a trusted choice for professionals.

Key Features

• DPDT configuration switches two circuits at once
• PCB mount with through-hole terminals for easy soldering
• 5A switching current for moderate power loads

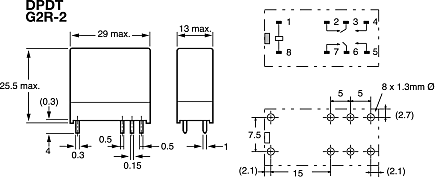

• Compact dimensions: 29 x 13 x 25.5 mm
• Wide operating temperature range: -40°C to 70°C
• Silver contacts for low resistance and durability

What's Included

• One Omron 12V DPDT relay unit
• Product datasheet with pinout diagram
• Mounting instructions for PCB installation
• Warranty card for quality assurance

Use Cases

This 12V DPDT relay is ideal for automation systems. It works well in HVAC controls and power supplies. Hobbyists use it in Arduino projects and robotics. Engineers choose it for industrial machinery and safety circuits. Its non-latching design saves power. The relay is perfect for signal routing and load switching. It fits in automotive electronics and lighting controls. Typical buyers include technicians, makers, and repair shops. This 12V DPDT relay is a versatile component for many fields.

Who It's For

This relay suits beginners and experts alike. It helps students learn circuit control. It aids professionals in building reliable systems. The compact size fits tight spaces. The robust build handles tough conditions. Anyone needing a dependable 12V DPDT relay will benefit.

Order the Omron 12V DPDT relay today from Electra Store. It ships fast and fits many applications. Upgrade your project with this reliable relay. Get yours now and enjoy dependable switching. Your satisfaction is guaranteed with every purchase.
