PIC 16F628A Flash-Based, 8-Bit CMOS

PIC 16F628A Microcontroller

The PIC 16F628A microcontroller is a powerful 8-bit flash device. It uses CMOS technology for low power. This MCU is perfect for hobbyists and engineers. It offers 3.5KB of program memory. You get 224 bytes of RAM and 128 bytes of EEPROM. The 18-pin package fits many designs.

This microcontroller runs at up to 20 MHz. It has 16 I/O pins for flexible control. The flash memory allows easy reprogramming. You can use it for many embedded projects. It is reliable and cost-effective.

The PIC 16F628A microcontroller handles complex tasks with ease. It includes a built-in comparator module. This helps with analog signal processing. The device also has a timer module. You can create precise delays and PWM signals. The internal oscillator saves external parts. This reduces your board size and cost. The PIC 16F628A microcontroller supports in-circuit serial programming. This means you can update code without removing the chip. It is ideal for rapid prototyping. The low-power sleep mode extends battery life. Many users rely on it for portable devices. The wide voltage range adds flexibility. You can power it from 2.0V to 5.5V. This works with both 3.3V and 5V systems. The high current I/O pins drive LEDs directly. You do not need extra transistors. The 16 I/O pins offer plenty of connections. You can read sensors and control actuators. The flash memory is durable. It supports at least 100,000 erase and write cycles. This ensures long-term reliability. The EEPROM stores calibration data or settings. It survives power loss. The RAM handles temporary variables. The PIC 16F628A microcontroller is a complete solution for many tasks.

Key Features

• 3.5KB flash program memory for your code
• 224 bytes of RAM and 128 bytes EEPROM
• 16 I/O pins with high current sink and source
• Operating voltage from 2.0V to 5.5V
• Up to 20 MHz clock speed
• Low-power sleep mode for battery projects

What is Included

• One PIC 16F628A microcontroller in an 18-pin DIP package

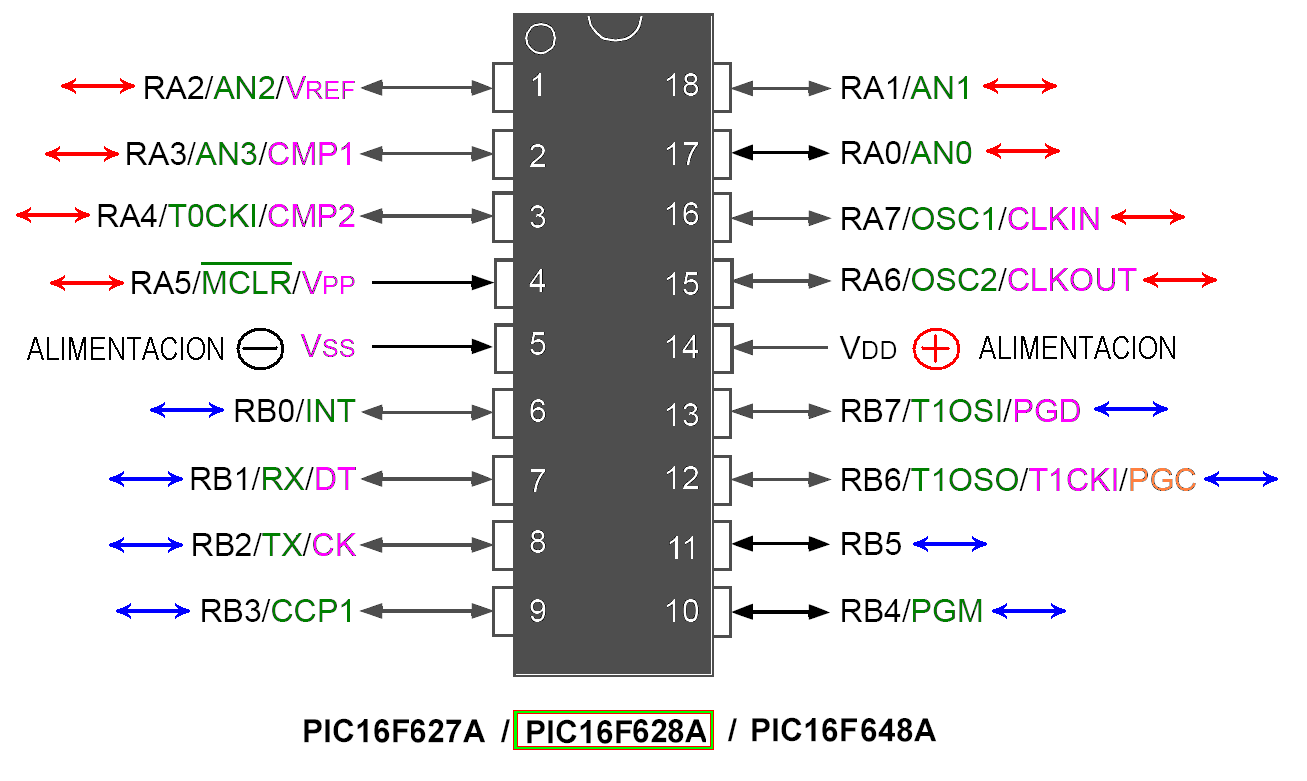

• Datasheet with full specifications and pinout
• Application notes for common designs
• Sample code for basic functions

Use Cases

The PIC 16F628A microcontroller works well in automation, robotics, and sensor systems. It is great for LED control, motor drivers, and data logging. Beginners and pros both choose this chip. It is a top pick for education and prototyping. Typical buyers include students learning embedded systems. Hobbyists use it for home automation projects. Engineers select it for small-scale industrial controls. It also fits in consumer electronics like timers and alarms. The low cost makes it ideal for volume production. The PIC 16F628A microcontroller is a versatile choice for any project.

Who It Is For

This microcontroller suits anyone who needs a reliable 8-bit MCU. It is perfect for makers building custom gadgets. Teachers use it in classroom labs. Repair technicians replace old chips with it. The PIC 16F628A microcontroller supports both simple and advanced designs. You can start with blinking an LED. Later you can build a full sensor network. The learning curve is gentle. Many online resources exist. You will find tutorials and forums. This chip has a large community. Support is easy to find.

Order the PIC 16F628A microcontroller today from Electra Store. We offer fast shipping and great support. Start your next project with confidence. Buy now and build something amazing. Do not wait. Get your PIC 16F628A microcontroller now. It will power your ideas. Click add to cart and begin.
