Ql1201 Universal Programming Module For ICD2 And Pickit2

QL1201 Universal Programming Module for ICD2 and PICKIT2

The Universal Programming Module QL1201 works with ICD2 and PICKIT2. It programs many chip types. Use it for PIC microcontrollers. It supports SOIC, DIP, and more. This module is perfect for engineers and hobbyists. It saves time and effort.

This Universal Programming Module expands your programming capabilities. It connects easily to your existing ICD2 or PICKIT2 programmer. You can program chips without removing them from circuits. The module handles multiple package types in one device. It reduces the need for separate adapters. This makes your workflow faster and smoother. The QL1201 is a reliable tool for daily use. It supports both old and new PIC chips. You get consistent results every time.

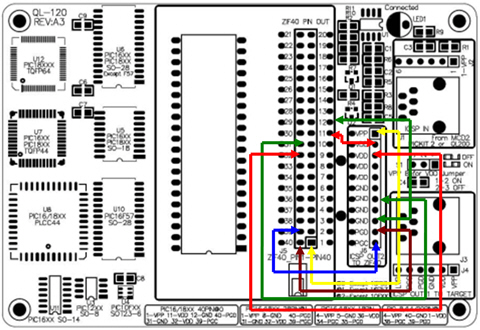

This module uses a clamp for SOIC chips. It also has a 3M ZIF socket. You can program DIP8 to DIP40 packages. The ICSP OUT port helps with other targets. It supports internal oscillation and reset chips. VPP voltage is selectable before VDD. This makes programming flexible and reliable.

Key Features

• Supports SOIC, SOT23-6, SO-8, SO-14, SO-18, SO-28, TQFP44, PQFP44, PLCC44, TQFP64, and DIP40 packages.
• Includes a 3M ZIF socket for DIP8, DIP14, DIP18, DIP20, DIP28, and DIP40 chips.

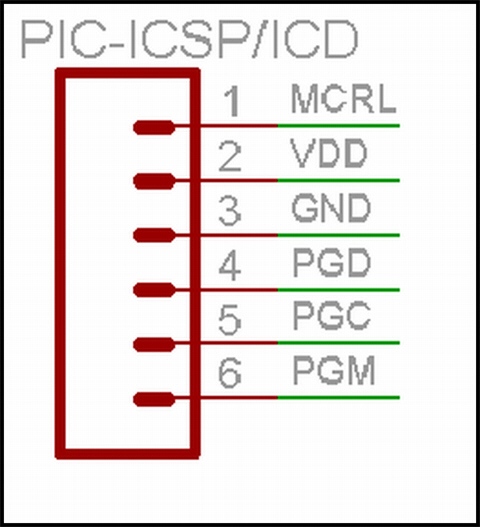

• ICSP OUT interface for easy connection to other target boards.
• Selectable VPP voltage before VDD for ICD2 compatibility.
• Works with internal oscillation and internal reset chips for repeated programming.
• Compact design with a clamp for SOIC programming without soldering.

Use Cases

Engineers use this module for prototyping. Hobbyists program PIC chips at home. It works for firmware updates. Use it in labs or workshops. The QL1201 is great for education. It handles many chip types. This makes it a versatile tool. Typical buyers include embedded developers. Students also benefit from its ease of use. Repair technicians use it for chip recovery. It suits anyone who needs reliable programming. The Universal Programming Module adapts to your needs.

Order the Universal Programming Module today. It boosts your workflow. Get reliable programming for your projects. Electra Store offers fast shipping. Buy now and start programming! This Universal Programming Module is a smart investment. It saves you time on every project. Don't wait to upgrade your toolkit. Click to order your QL1201 now. Enjoy professional results at home or work. Your next project starts here.
