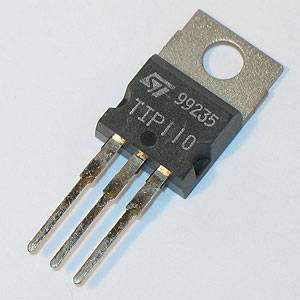

Tip110 NPN Complementary Silicon Power Darlington Transistor

Tip110 NPN Complementary Silicon Power Darlington Transistor

The Tip110 NPN Transistor is a high-performance complementary silicon power Darlington. It is designed for demanding switching and amplification tasks. This transistor handles up to 5A of collector current. It offers a high DC current gain. Engineers and hobbyists trust it for reliable operation.

This Darlington transistor combines two NPN transistors in one package. This gives you very high gain. You can drive large loads with small input signals. It works well in linear and switching circuits. The Tip110 NPN Transistor is built for efficiency and durability.

The Tip110 NPN Transistor excels in many electronic designs. It uses Darlington pair technology internally. This means it can amplify tiny currents into large ones. You can control heavy motors with a microcontroller pin. It also handles audio signals cleanly. The device has a low saturation voltage. This reduces wasted power as heat. It switches quickly for pulse-width modulation. The robust TO-220 package allows easy heat sink attachment. This keeps the transistor cool under load. The Tip110 NPN Transistor is a versatile workhorse for any project.

Key Features

• High DC current gain of 1000 minimum at 3A collector current
• Collector-emitter voltage rating of 60V for robust performance
• Complementary PNP type available for push-pull designs
• Industry-standard TO-220 package for easy mounting and heat sinking
• Fast switching speed suitable for PWM and audio applications
• Low saturation voltage reduces power loss and heat

What's Included

• One Tip110 NPN Transistor in a TO-220 package
• Mounting hardware kit with screw and insulating washer
• Thermal compound pad for optimal heat transfer
• Product datasheet with full specifications and curves

Use Cases

The Tip110 NPN Transistor is ideal for motor speed controllers. It works great in audio amplifiers. Use it in power supply circuits. It fits in robotics projects. Hobbyists and professionals choose it for its reliability. Typical buyers include electronics students. They also include repair technicians and makers. Engineers use it in industrial controls. The Tip110 NPN Transistor is great for LED dimmers. It also works in solenoid drivers. Anyone needing high gain and current will benefit.

Upgrade your project with the Tip110 NPN Transistor today. It delivers consistent performance. Order now from Electra Store for fast shipping. Get the power and gain you need. Your designs deserve the best components. Click to add the Tip110 NPN Transistor to your cart. We ship within 24 hours. Start building with confidence right away.
