Tip122 NPN Complementary Silicon Power Darlington Transistor

Tip122 Darlington Transistor – 100V 8A NPN Power Switch

The Tip122 Darlington Transistor is a high-power NPN device. It handles up to 100V and 8A. This makes it perfect for switching and amplification. Hobbyists and engineers trust it for reliable performance. Electra Store offers genuine parts at great prices.

This transistor uses Darlington pair technology. It delivers high current gain. You get efficient switching with low drive requirements. It works well in motor control and power regulation. The robust design ensures long life in tough conditions. The Tip122 Darlington Transistor combines two transistors in one package. This gives you very high current gain. A small input signal can control a large output load. This reduces the need for extra driver stages. It simplifies your circuit design. The device also has built-in protection diodes. These diodes handle inductive kickback from motors or relays. This makes the Tip122 Darlington Transistor very durable. It can withstand harsh industrial environments. The TO-220 package allows easy heat sinking. You can mount it on a heatsink for high power applications. This keeps the junction temperature safe. The Tip122 Darlington Transistor is a workhorse for many projects.

Key Features

• Collector-emitter voltage: 100V maximum for high-voltage circuits
• Continuous collector current: 8A for demanding power loads
• High DC current gain: 1000 minimum at 3A
• Complementary pair with TIP127 for push-pull designs

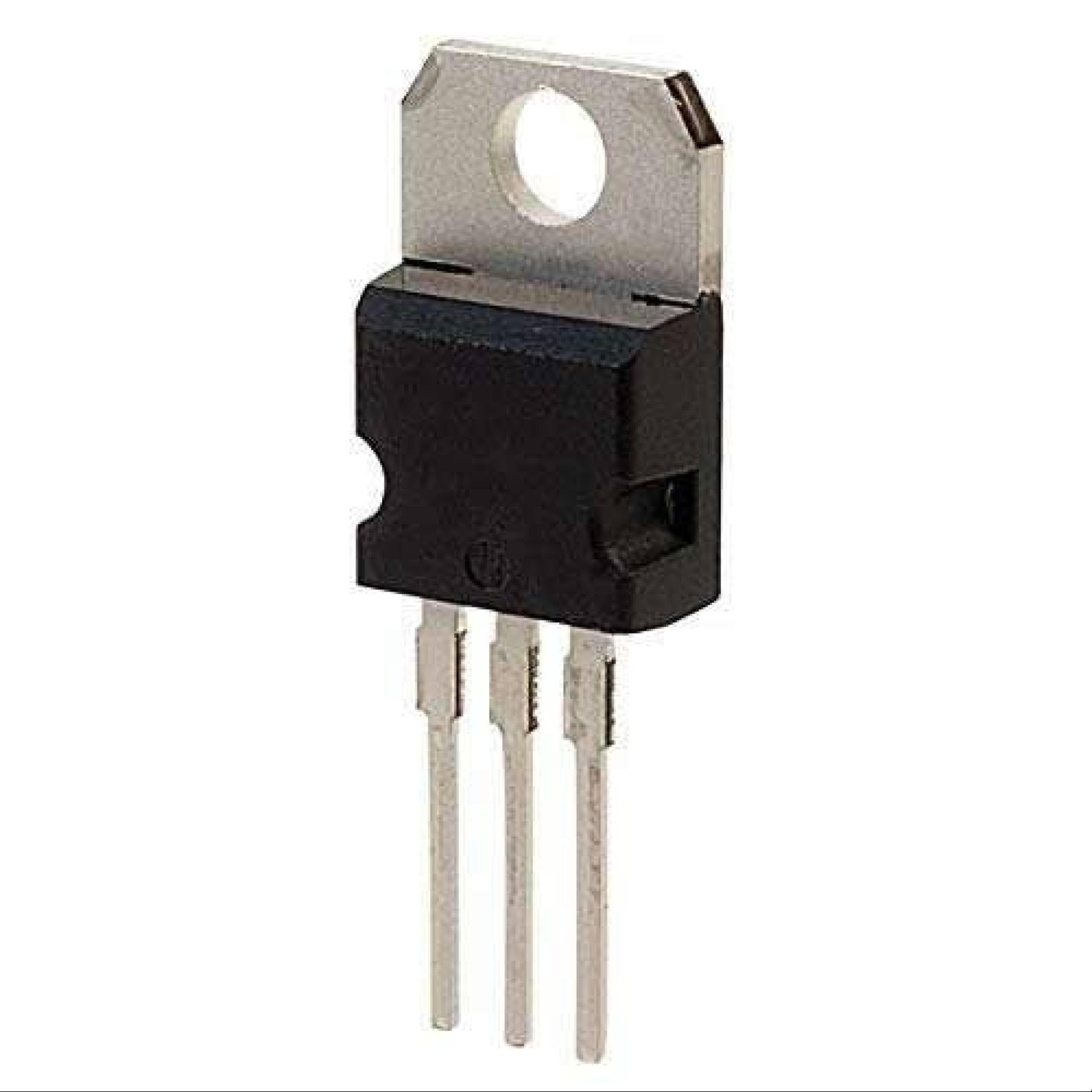

• Industry-standard TO-220 package for easy mounting
• Operating temperature range: -65°C to +150°C

What's Included

• One Tip122 Darlington Transistor per order
• Electra Store branded packaging for authenticity
• Product datasheet with full specifications
• Static-safe handling bag for protection

Use Cases

Use the Tip122 Darlington Transistor in motor drivers, power supplies, and relay replacements. It also works in audio amplifiers and LED dimmers. Engineers choose it for industrial controls and robotics. Hobbyists love it for DIY projects. Typical buyers include electronics students, repair technicians, and makers. They need a reliable switch for high current loads. The Tip122 Darlington Transistor is ideal for building a DC motor speed controller. It also works well in a solar charge regulator. You can use it in a high-power LED driver. It is great for solenoid drivers in automation systems. The high gain means you can drive it directly from a microcontroller. This saves you extra components. The Tip122 Darlington Transistor is a top choice for prototyping.

Order your Tip122 Darlington Transistor today. Electra Store ensures fast delivery and top quality. Upgrade your project with this reliable component. Click add to cart now! The Tip122 Darlington Transistor will make your designs more efficient. Don't wait to start your next build. Get yours now and see the difference.
