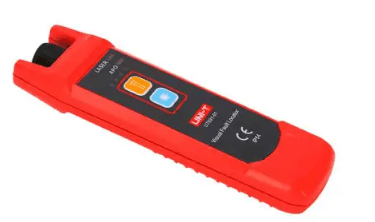

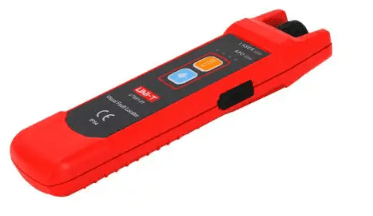

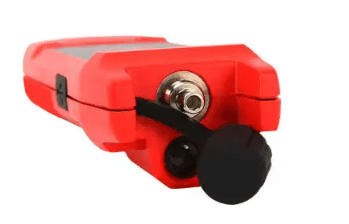

UT691-01 Visual Fault Locator
Electra Store
SKU: UT691
950.00 EGP
Available on Backorder
1
Categories: UNI-T
Overview
UT691 visual fault locator is designed for optical fiber fault detection and locating, end to endoptical fiber identification and more. It is IP54 rated, uses 650nm visible redlight with 2emitting modes of continuous or pulse. With the functions of APO, battery statusindicator and flashlight, it can be widely used in the fields of optical cable constructionand maintenance, optical fiber communication or sensing, optical CATV and so on.
Description
Specifications of UT691-01 Visual Fault Locator
| Specifications | UT691-01 |
| Laser output power | ≥1mW |
| Optical fiber length range | 2~3km |
| Wavelength of redight | 650±10nm |
| Optical fiber adapter | 2.5mm FC general connector |
| Battery type | 3.7V 1050mAh polymer lithium battery |
| Battery life | ＞12h |
| Battery status display | The battery status will be shown by 4 blue LED (not in flashlight) |
| Green indicator | Indicates auto power off state which LED will flash white light for 3 times |
| Laser mode | Continuous mode/Pulse mode |
| Charge voltage and current | DC 5V, < 1A |
| APO | 15min auto power off (manual adjustable) |
| Warning symbol | √ |
| Warning | √ |
| Key press test | ＞5000 times |
| Drop test | 1m |
| General Characteristics | |
| Power | 1050mAh rechargeable battery |
| Product color | Red and grey |
| Product net weight | 62g |
| Product size | 130mm x 38mm x 27mm |
