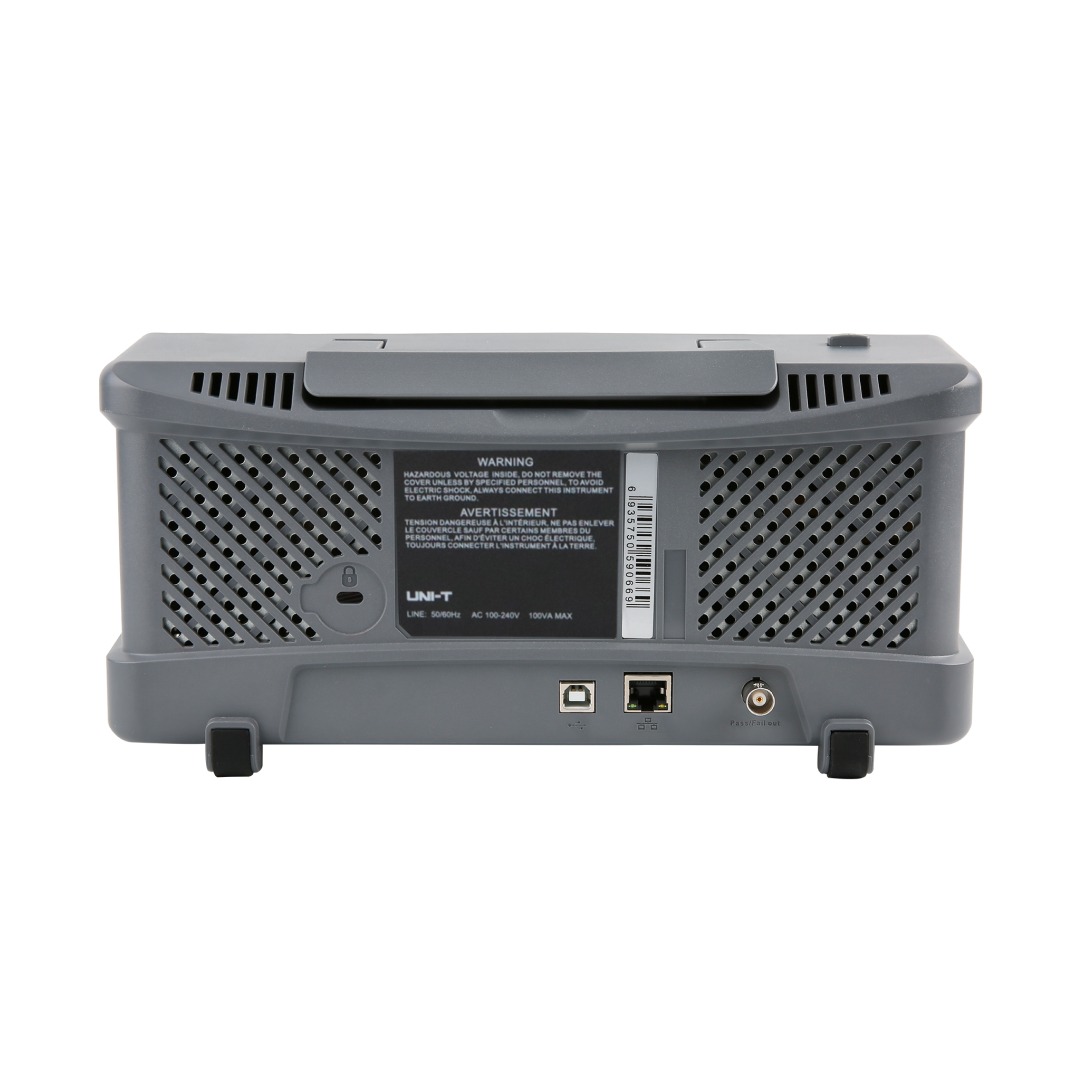

UTD-2052CEX+ 50MHz Digital Oscilloscope

UTD-2052CEX+ 50MHz Digital Oscilloscope

Key Features:

• Bandwidth: 50 MHz, allowing precise measurement of fast-changing electrical signals.

• Sampling Rate: Up to 500 MS/s (Mega Samples per Second) for high-resolution signal capture.

• Channels: Dual-channel (2 channels) for simultaneously viewing and comparing multiple signals.

• Memory Depth: 25 kpts, ensuring detailed capture of long-duration signals without loss of information.

• Display: 7-inch color LCD screen, providing a clear and detailed view of waveforms and measurement data.

• Trigger Types: Includes edge, pulse, video, and slope triggers, enabling flexible signal capture and advanced analysis.

• Mathematical Functions: Built-in math functions like addition, subtraction, and FFT (Fast Fourier Transform) for deeper signal analysis.

• Connectivity: USB interface for easy data transfer, storage, and software updates.

• Compact Design: Lightweight and portable, suitable for lab work, field applications, or educational environments.

Applications:

• Electronics Testing and Debugging: Perfect for diagnosing and troubleshooting circuits, microcontroller-based projects, and electronic designs.

• Education: Useful for teaching students the principles of signal processing and waveform analysis.

• Maintenance: Helps identify signal faults and irregularities in a wide range of electronic equipment.

• General Signal Monitoring: Suitable for analyzing audio, video, and RF signals in industrial or personal projects.

Benefits:

• High Performance: With a 50 MHz bandwidth and fast sampling rate, it captures detailed and precise waveforms, ideal for both hobbyists and professionals.

• Ease of Use: The large, intuitive display and user-friendly interface make signal analysis straightforward, even for beginners.

• Versatile and Portable: Lightweight and versatile, it can be easily transported and used in different work environments, from labs to field settings.

• USB Connectivity: Easily save and share waveform data or update firmware through the USB port, adding to its convenience.
