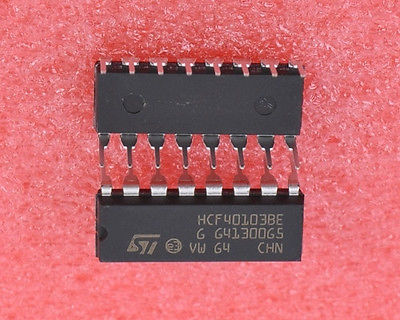

40103 DIP 8-Stage Presettable Synchronous 8-Bit Binary Down Counters

40103 DIP 8-Stage Presettable Synchronous 8-Bit Binary Down Counters

The 40103 DIP 8-Bit Binary Down Counters are high-performance ICs. They offer precise counting for digital projects. These counters are presettable and synchronous. They work well in timing and control applications. Engineers and hobbyists trust them for reliable operation.

These 8-Bit Binary Down Counters count down from a preset value. They use a synchronous clock for accurate timing. The 8-stage design allows flexible counting ranges. You can set the starting count easily. This makes them ideal for frequency division and event counting.

These 8-Bit Binary Down Counters do more than just count. They synchronize with an external clock signal. This ensures every count step is precise. The presettable feature lets you load any 8-bit value. The counter then counts down to zero. It stops and outputs a terminal count signal. This signal can trigger other devices. You can cascade multiple chips for larger counts. The ripple clock output makes this simple. Just connect the output to the next chip. This expands your counting range to 16 bits or more. The asynchronous master reset clears the counter instantly. This is useful for system resets. The wide voltage range works with many logic families. It operates from 3V to 15V. This makes it compatible with TTL and CMOS systems. The low power consumption is ideal for battery projects. High noise immunity keeps it stable in industrial settings. These counters are built for tough environments.

Key Features

• 8-bit presettable synchronous down counting with DIP-16 package
• Wide operating voltage range from 3V to 15V for versatile use
• Low power consumption typical of 40 series CMOS logic
• Asynchronous master reset for immediate counter reset
• Ripple clock output for cascading multiple counters easily
• High noise immunity ensures stable performance in noisy environments

Use Cases

These 8-Bit Binary Down Counters are perfect for digital timers. They work well in frequency dividers and sequencers. Hobbyists use them in LED chasers and clock circuits. Engineers apply them in industrial control systems. They are also great for educational projects on counters. Typical buyers include electronics students and makers. They also suit professional circuit designers. Anyone building a digital timer needs these chips. They are essential for programmable frequency generators. They work in event counters for production lines. They fit in automotive timing modules too. The presettable feature is key for custom intervals. You can set exact delays for your application. These counters are a staple in any digital lab.

Upgrade your project with the 40103 DIP 8-Bit Binary Down Counters. They deliver precise counting and reliable performance. Order now from Electra Store for fast shipping. Enhance your designs with these trusted components today! Do not wait. Add these 8-Bit Binary Down Counters to your cart now. They will make your next project a success. Get them while stock lasts. Your digital designs deserve the best. Order today and start building.
