4016 DIP Quad Bilateral Switch

4016 DIP Quad Bilateral Switch

The 4016 DIP Quad Bilateral Switch by Electra Store is a versatile IC. It contains four independent bilateral switches. Each switch can pass analog or digital signals. This makes it ideal for signal routing and multiplexing. Hobbyists and engineers love its simplicity and reliability.

This DIP Quad Bilateral Switch operates from 3V to 15V. It offers low on-resistance and high off-isolation. You can control each switch with a logic-level input. The 4016 is a classic 40 series chip. It is perfect for audio, control, and test circuits.

Each switch in the DIP Quad Bilateral Switch works like a relay. It connects or disconnects two signal paths. The control pin uses a simple high or low voltage. This allows for easy integration into any circuit. The 4016 can handle both analog and digital signals. It is a true bilateral switch with no polarity. This means signals can flow in either direction. The low on-resistance ensures minimal signal loss. The high off-isolation prevents crosstalk between channels. You can use it for audio muting or signal selection. It also works well for sample-and-hold circuits. The wide voltage range adds flexibility to your designs. This DIP Quad Bilateral Switch is a reliable choice for many projects.

Key Features

• Four independent bilateral switches in a 14-pin DIP package
• Wide supply voltage range from 3V to 15V DC
• Low on-resistance typically 400 ohms at 10V
• High off-isolation for clean signal switching
• Logic-level control inputs compatible with TTL and CMOS
• Direct replacement for industry-standard 4016 ICs

What's Included

• One 4016 DIP Quad Bilateral Switch IC
• Protective anti-static packaging

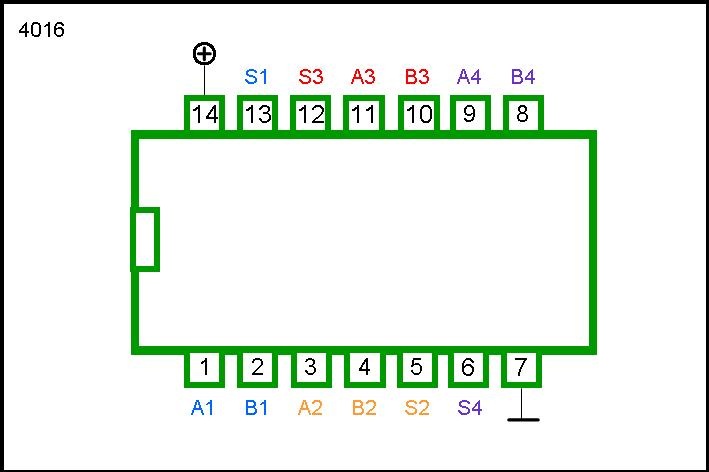

• Product datasheet with pinout diagram
• Electra Store quality guarantee

Use Cases

This DIP Quad Bilateral Switch is perfect for audio routing. Use it in mixers or effects pedals. It works great for analog multiplexing. Engineers use it for digital signal gating. Hobbyists love it for educational kits. It is ideal for prototype boards. The 4016 is also used in test equipment. It works for low-frequency switching. Control applications benefit from its simplicity. Students learn about analog switches with this chip. It is a staple in many electronics labs. The DIP Quad Bilateral Switch is a trusted component for all skill levels.

Who It's For

This product is for electronics enthusiasts. It suits hobbyists building custom circuits. Engineers use it for professional designs. Teachers use it in classroom demonstrations. Students learn signal routing with this IC. It is also for repair technicians. Anyone needing a reliable analog switch will benefit. The DIP Quad Bilateral Switch is a versatile tool for many users.

Order your 4016 DIP Quad Bilateral Switch from Electra Store today. We offer fast shipping and reliable components. Upgrade your project with this trusted IC. Buy now and get building! This DIP Quad Bilateral Switch will enhance your designs. It is a must-have for any electronics workbench. Don't wait to start your next project. Get the 4016 DIP Quad Bilateral Switch now and see the difference.
