4093 DIP Quad 2-Input Schmitt Trigger

4093 DIP Quad 2-Input Schmitt Trigger

The 4093 DIP Quad Schmitt Trigger is a versatile IC from the 40 Series. It contains four independent 2-input NAND gates with Schmitt trigger action. This makes it ideal for noise filtering and waveform shaping in digital circuits. Hobbyists and professionals alike will find it useful.

Each gate has hysteresis. This provides clean output transitions even with slow or noisy input signals. The IC operates from 3V to 15V. It is compatible with TTL and CMOS logic levels. Use it to debounce switches or clean up sensor signals.

The 4093 DIP Quad Schmitt Trigger excels at converting messy signals into clean digital pulses. It filters out electrical noise from long wires or motors. This chip also creates precise timing delays for LED flashers or tone generators. You can build a simple oscillator with just one resistor and one capacitor. The hysteresis ensures stable switching without false triggers. It handles slow-changing inputs like temperature sensors or light detectors. The 4093 DIP Quad Schmitt Trigger is a must-have for any digital workbench. Its robust design works reliably in harsh environments. The low power draw makes it perfect for battery-powered devices. You can cascade multiple gates for complex logic functions. The 4093 DIP Quad Schmitt Trigger is truly a problem solver for signal integrity issues.

Key Features

• Four independent 2-input NAND gates with Schmitt trigger action
• Wide supply voltage range: 3V to 15V DC
• High noise immunity due to built-in hysteresis
• Standard DIP-14 package for easy breadboarding
• Low power consumption typical of CMOS logic
• Direct replacement for many 4093B variants

What's Included

• One 4093 DIP Quad Schmitt Trigger IC
• Anti-static protective packaging

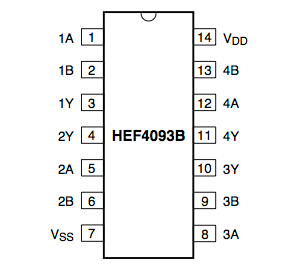

• Product datasheet with pinout diagram
• Electra Store satisfaction guarantee

Use Cases

This IC is perfect for projects requiring clean digital signals. Use it in switch debouncing, pulse shaping, or oscillator circuits. It works well in Arduino and Raspberry Pi projects. Engineers and students rely on it for reliable logic. Robotics enthusiasts use it to clean up encoder signals. Audio hobbyists employ it for noise-free trigger inputs. Industrial technicians trust it for sensor conditioning. The 4093 DIP Quad Schmitt Trigger suits beginners and experts alike. It is ideal for prototyping new circuit ideas. You can also use it in repair work for vintage electronics. The chip is a staple in educational labs for teaching digital logic.

Who It's For

Typical buyers include electronics hobbyists, engineering students, and professional circuit designers. Makers building custom controllers will love its versatility. Repair technicians need it for restoring old equipment. Teachers use it in classroom demonstrations. The 4093 DIP Quad Schmitt Trigger is for anyone who values clean signals. It is a go-to component for reliable digital circuits. Whether you are a beginner or a pro, this chip delivers.

Order the 4093 DIP Quad Schmitt Trigger from Electra Store today. Get fast shipping and great support. Enhance your circuit designs with this essential component. Stock up now for your next project. You will appreciate the quality and performance. Buy today and start building better circuits.
