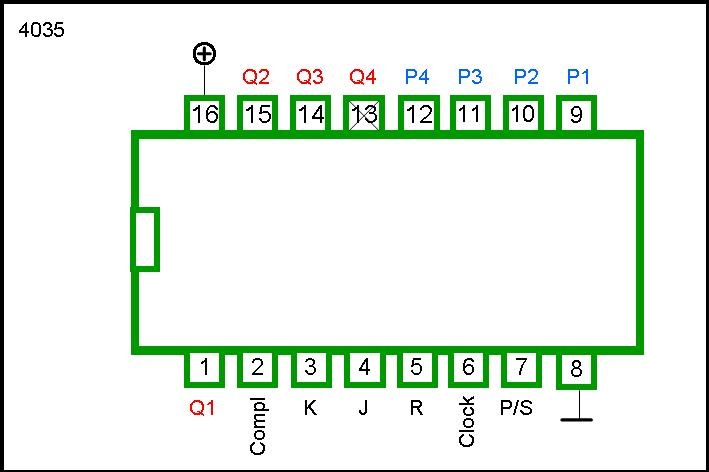

4035 DIP 4-Stage Parallel-In / Parallel-Out (Piop) With J-K Input AND True / Complement Outputs

4035 DIP 4-Stage Parallel-In / Parallel-Out (Piop) With J-K Input And True / Complement Outputs

The 4035 DIP 4-Stage Parallel-In Parallel-Out IC is a versatile logic component. It features J-K inputs and true/complement outputs. This makes it perfect for digital electronics projects. Engineers and hobbyists alike will appreciate its reliability. It is part of the trusted 40 series family.

This IC allows parallel data loading and output. It uses J-K inputs for flexible control. The true and complement outputs give you both signal forms. This simplifies circuit design. You can use it in counters, registers, and more. It operates across a wide voltage range.

The 4035 DIP 4-Stage Parallel-In Parallel-Out IC works as a four-bit register. It loads data all at once. This is faster than serial methods. The J-K inputs let you set or reset each stage. You can also toggle them. The true output gives the stored bit. The complement output gives its opposite. This saves you from using extra inverters. The chip handles data flow with precision. It works well in synchronous systems. A clock pulse triggers each operation. This ensures timing is accurate. The 4-Stage Parallel-In Parallel-Out design is robust. It reduces wiring complexity. You get cleaner circuit layouts. The IC is also static-sensitive protected. This adds durability to your builds. It is a staple for digital logic tasks.

Key Features

• Four independent stages for parallel data handling
• J-K inputs allow set, reset, and toggle functions
• True and complement outputs provide both signal polarities
• Standard DIP-16 package fits breadboards and PCBs easily
• Wide operating voltage range from 3V to 15V for flexibility
• Low power consumption ideal for battery-powered projects

Use Cases

This IC is great for digital counters and shift registers. Use it in data storage systems or logic controllers. It works well in educational kits and prototyping. Hobbyists building custom digital circuits will find it essential. It also suits industrial control applications. Students learning digital logic will benefit too. The 4-Stage Parallel-In Parallel-Out function is clear. It helps teach register concepts. Engineers use it in memory buffers. It also works in arithmetic logic units. The chip is popular in retro computing projects. It fits into many classic designs. Anyone building with 40 series logic will want this part.

Order your 4035 DIP 4-Stage Parallel-In Parallel-Out IC today. Electra Store ensures fast shipping and quality. Upgrade your projects with this reliable component now! The 4-Stage Parallel-In Parallel-Out design is a proven solution. It will simplify your circuits. Get yours today and start building!
