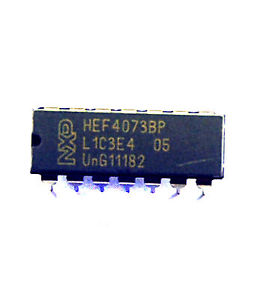

4073 DIP Triple 3-Input AND Gate

4073 DIP Triple 3-Input AND Gate

The 4073 Triple 3-Input AND Gate is a CMOS integrated circuit. It contains three independent AND gates. Each gate has three inputs. This DIP package is ideal for breadboards and PCBs. It works well for digital logic projects. Hobbyists and engineers love its reliability.

This IC performs a logical AND on three inputs. The output is high only when all inputs are high. It operates from 3V to 15V. This makes it versatile for many circuits. The 4073 is a standard 40 series chip. It is easy to use and widely available.

The Triple 3-Input AND Gate expands your design options. Each gate works independently. You can connect them in series or parallel. This chip handles complex logic functions. It processes signals with precision. The Triple 3-Input AND Gate reduces component count. You get three gates in one package. This saves space on your board. It also simplifies wiring. The CMOS technology ensures low power draw. Your projects run longer on batteries. The wide voltage range adds flexibility. You can use it with 5V or 12V systems. The high noise immunity prevents errors. This makes the Triple 3-Input AND Gate reliable in noisy environments. It works with sensors and microcontrollers. The chip is robust and durable. It withstands typical handling and soldering. You can trust it for repeated use.

Key Features

• Three independent 3-input AND gates in one DIP package
• Wide supply voltage range from 3V to 15V
• Standard 40 series CMOS logic family
• Low power consumption for battery-powered projects
• High noise immunity for stable operation
• Compatible with TTL and other logic families

What's Included

• One 4073 DIP Triple 3-Input AND Gate IC

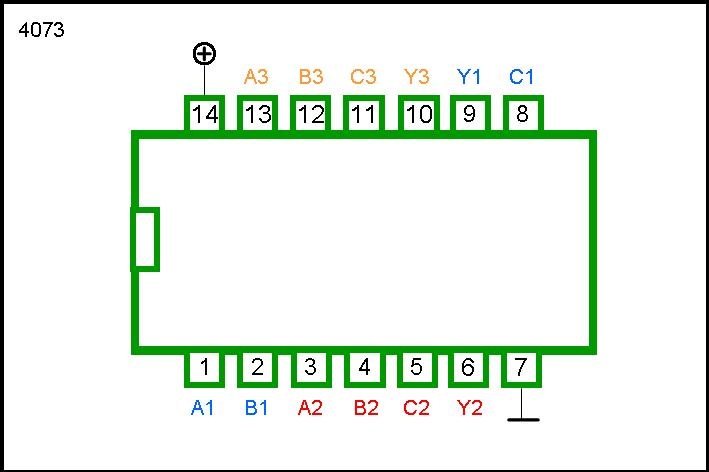

• Pinout diagram for easy wiring
• Datasheet with electrical specifications
• Protective anti-static packaging

Use Cases

Use the 4073 in digital logic circuits. It is great for creating combinational logic. Build alarm systems, data selectors, or control units. Students learn basic logic with this chip. Engineers prototype quickly with it. It fits many educational and professional projects. Typical buyers include hobbyists and makers. They build robots and automation systems. Teachers use it in classroom labs. Students practice logic design. Professionals integrate it into industrial controls. The Triple 3-Input AND Gate suits security systems. It also works in traffic light controllers. You can use it for signal gating. It helps in data routing applications. The chip is perfect for learning Boolean algebra. It supports complex decision-making circuits. Anyone building digital electronics needs it.

Who It's For

This product is for electronics enthusiasts. It is for students and teachers. Engineers and technicians use it too. The Triple 3-Input AND Gate helps beginners learn. It assists experts in prototyping. It is ideal for DIY projects. You can use it in home automation. It works in educational kits. The chip is a staple in any lab. It supports both simple and advanced designs. The Triple 3-Input AND Gate is a must-have for logic fans.

Order your 4073 Triple 3-Input AND Gate today. Electra Store offers fast shipping and great prices. Add this essential logic gate to your kit. Build better circuits now. The Triple 3-Input AND Gate will boost your projects. Do not wait. Get yours now and start creating.
