4522 DIP PROGRAMMABLE BCD DIVIDE-BY-N COUNTER

4522 DIP Programmable BCD Divide-By-N Counter

The BCD Divide-By-N Counter is a versatile IC from the 45 series. It is designed for precise digital counting. This DIP package is easy to use in breadboards and PCBs. It suits engineers and hobbyists alike.

This counter divides input frequencies by a programmable number N. It uses BCD coding for simple integration. You can set the division ratio with external switches. It works reliably in many digital systems.

The BCD Divide-By-N Counter accepts a clock signal and divides it. You program the division factor using BCD inputs. The output then pulses once for every N input cycles. This makes it ideal for frequency scaling. It also works for event counting over long periods. The IC cascades easily for higher division ratios. You can chain multiple chips together. This gives you division up to 9999 or more. The internal logic handles all timing automatically. It requires minimal external components. Just add a few resistors and capacitors. The chip then delivers clean, stable output signals. It operates from 3V to 18V DC. This wide range fits many power supplies. The low power draw helps battery devices run longer. The high noise immunity prevents false counts. This ensures accuracy in noisy environments. The DIP-16 package fits standard sockets. You can solder it directly to boards too. Prototyping is simple with breadboards. The pin layout is logical and easy to wire. This makes the BCD Divide-By-N Counter a top choice for digital designs.

Key Features

• Programmable divide-by-N from 1 to 9999
• BCD output for easy reading and control

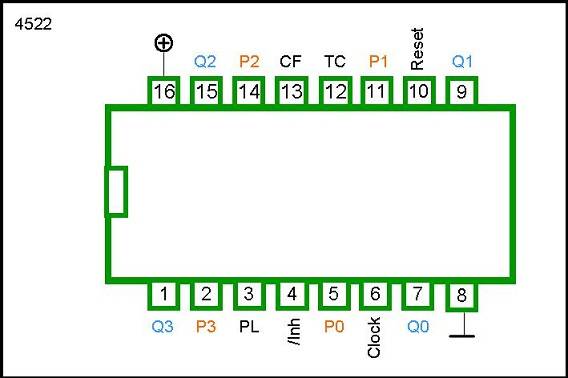

• Standard DIP-16 package for prototyping
• Wide operating voltage range of 3V to 18V
• Low power consumption for battery projects
• High noise immunity for stable operation

Use Cases

This BCD Divide-By-N Counter is perfect for frequency dividers, timers, and event counters. Use it in digital clocks, industrial controls, or educational kits. It is a reliable choice for any counting task.

Typical buyers include electronics students, hobbyists, and professional engineers. Hobbyists use it in custom timer circuits. Students learn digital logic with it in labs. Engineers deploy it in industrial control panels. It also appears in test equipment like frequency counters. The chip is great for retro projects too. It works well in vintage computer repairs. Many use it in musical instrument synthesizers. It can divide clock signals for tempo control. The BCD Divide-By-N Counter also fits in automotive electronics. It helps with speed sensors and tachometers. The programmable nature makes it flexible. You can change the division ratio on the fly. This suits prototyping and final products alike. The robust design handles real-world conditions. It tolerates temperature changes and voltage fluctuations. This makes it a trusted component for long-term use.

Upgrade your project with the 4522 DIP Programmable BCD Divide-By-N Counter. Order from Electra Store today. Get fast shipping and great support. Build better circuits now. Don't wait to start your next design. This IC will save you time and effort. It delivers precise results every time. Click to order and get it delivered quickly. Your projects deserve the best components. Choose the BCD Divide-By-N Counter for reliable performance. Order now and see the difference.
