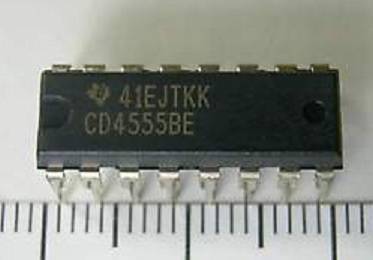

4555 DIP DUAL 1-OF-4 DECODERDEMULTIPLEXER ACTIVE HIGH OUTPUT

4555 DIP Dual 1-of-4 Decoder Demultiplexer Active High Output

The 4555 DIP Dual Decoder is a versatile integrated circuit. It functions as a 1-of-4 decoder or demultiplexer. This IC features active high outputs. It is part of the 45 series logic family. Hobbyists and engineers use it for digital projects. It simplifies complex logic circuits.

This decoder takes two binary inputs. It activates one of four outputs. The active high output means the selected pin goes high. This design is ideal for address decoding. It also works for data routing. The DIP package makes it easy to use on breadboards.

The 4555 DIP Dual Decoder contains two independent decoders. Each decoder has its own enable pin. You can use them separately or together. This gives you more flexibility in your designs. The IC converts binary codes into single active lines. It can also route data from one input to multiple outputs. This makes it a true demultiplexer. The 4555 DIP Dual Decoder handles up to 8 outputs total. It works with standard logic signals. You can cascade multiple chips for larger systems. The design is robust and reliable.

Key Features

• Dual 1-of-4 decoder or demultiplexer in a single DIP package.
• Active high outputs for direct logic level control.
• Wide operating voltage range from 3V to 15V.
• Low power consumption suitable for battery-powered devices.
• Standard 16-pin DIP package for easy prototyping.
• Compatible with TTL and CMOS logic levels.

Use Cases

Use the 4555 DIP Dual Decoder in memory address decoding. It works well for multiplexing data lines. Build digital counters or select peripherals. It is perfect for educational kits. Engineers use it in industrial control systems. Hobbyists love it for Arduino projects. The 4555 DIP Dual Decoder is great for students learning digital logic. It helps in building seven-segment display drivers. You can use it in home automation systems. It is also ideal for robotics projects. The 4555 DIP Dual Decoder fits many applications.

Buy the 4555 DIP Dual Decoder today. It is a reliable component for your next project. Electra Store offers fast shipping. Get your 4555 DIP Dual Decoder now. Build smarter circuits with ease. Order the 4555 DIP Dual Decoder today and start creating. Your projects will work better with this chip. Do not wait. Add it to your cart now.
