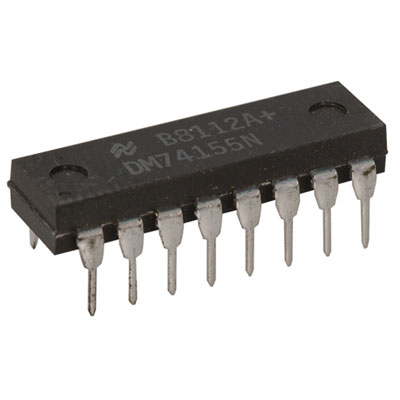

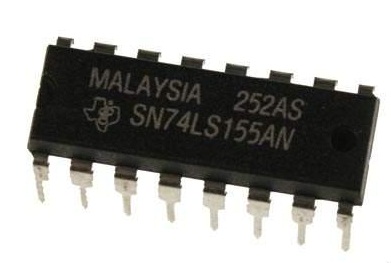

74155 DIP Dual 2-Line To 4-Line Decoder / Demultiplexer

74155 DIP Dual 2-Line To 4-Line Decoder / Demultiplexer

The 74155 DIP decoder is a versatile IC. It converts two input lines into four output lines. This chip works as a decoder or demultiplexer. It is ideal for digital logic projects. Hobbyists and engineers love its reliability. Use it in counters, displays, and data routing.

This IC simplifies complex circuits. It reduces the need for extra components. The dual design offers two independent sections. Each section has active-low outputs. This gives you more control. You can use it for address decoding or signal distribution.

The 74155 DIP decoder performs two main functions. As a decoder, it takes a 2-bit binary input. It then activates one of four outputs. This is perfect for selecting devices. As a demultiplexer, it routes a single input. It sends that signal to one of four outputs. You choose the output with the select lines. This chip has two enable inputs per section. They give you extra control over operation. The 74155 DIP decoder works with standard TTL logic. It is a reliable choice for many projects. You can cascade multiple chips for more outputs. This expands your design possibilities. The chip operates at high speed. It processes signals with minimal delay. This makes it suitable for real-time systems. The 74155 DIP decoder is a staple in digital electronics. It is easy to use and very flexible.

Key Features

• Dual 2-line to 4-line decoder or demultiplexer in one DIP package.
• Active-low outputs for easy integration with other logic families.
• Wide operating voltage range from 4.75V to 5.25V.
• High noise immunity ensures stable performance in noisy environments.
• Standard 16-pin DIP package fits breadboards and PCBs.
• Compatible with TTL logic levels for seamless system design.

What's Included

• One 74155 DIP decoder IC from Electra Store.
• Dual independent decoder sections for flexible use.
• Two enable inputs per section for added control.
• Active-low outputs for direct connection to LEDs or other chips.

Use Cases

Build memory address decoders for microcontrollers. Create demultiplexers for data distribution. Use it in seven-segment display drivers. It works great in educational kits and prototyping. Students and professionals rely on this chip for fast, efficient designs. The 74155 DIP decoder is also used in digital counters. It helps route signals in complex systems. Hobbyists use it for home automation projects. Engineers use it in industrial control circuits. It is perfect for anyone learning digital logic. The chip is a great tool for teaching binary concepts. It is also useful for signal routing in audio systems. The 74155 DIP decoder is a must-have for your toolkit.

Who It's For

This chip is for electronics enthusiasts. It is for students learning digital circuits. It is for engineers designing new systems. It is for hobbyists building fun projects. The 74155 DIP decoder fits all skill levels. Beginners find it easy to use. Experts appreciate its reliability. It is a versatile part for any lab. You can use it in school or at work. It is a great addition to your parts bin.

Order the 74155 DIP decoder today. It boosts your project's performance. Electra Store offers fast shipping and quality parts. Get yours now and start building! You will love the results. The 74155 DIP decoder makes your designs better. Do not wait. Order today and see the difference.
