7425 DIP Dual 4-Input NOR Gate With Strobe

7425 DIP Dual 4-Input NOR Gate With Strobe

The 7425 DIP Dual 4-Input NOR Gate with Strobe is a reliable logic IC from the 74 series. It is perfect for engineers and hobbyists. This gate performs NOR logic on four inputs. The strobe input adds control. It is ideal for digital circuits.

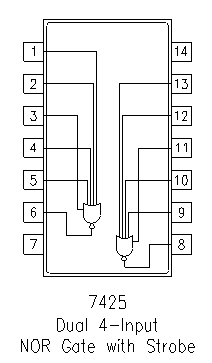

This 7425 DIP NOR Gate combines two independent NOR gates in one package. Each gate accepts four inputs. The strobe pin lets you gate the output. When the strobe is high, the output stays low. When the strobe is low, the gate works normally. This gives you extra control. You can disable the gate without changing inputs. It is useful for bus systems. The 7425 DIP NOR Gate also reduces part count. It simplifies your circuit design. The TTL logic is fast and robust. It works well with other 74 series chips. You can cascade multiple gates easily. This IC handles complex logic functions. It is a building block for many projects.

Key Features

• Dual 4-input NOR gate with strobe for added control
• Standard 74 series TTL logic, compatible with 5V systems

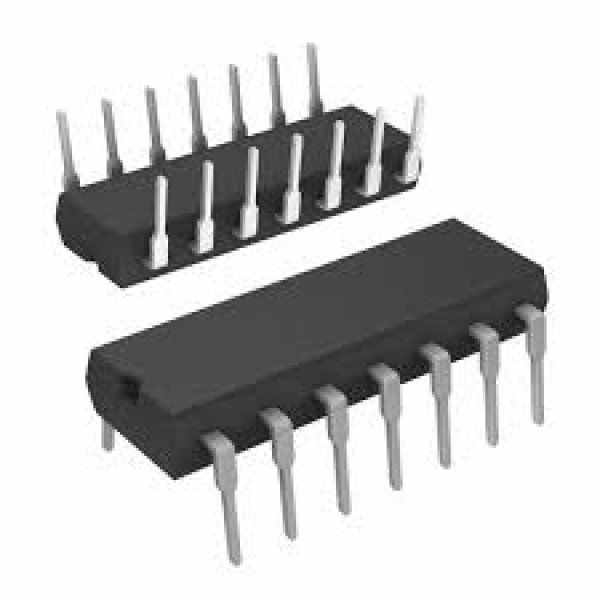

• DIP-14 package for easy breadboarding and PCB use
• High noise immunity and fast switching speeds
• Wide operating temperature range for industrial use
• Reliable performance from Electra Store with 5-year warranty

What's Included

• One 7425 DIP NOR Gate IC in a DIP-14 package
• Datasheet with pinout and truth table
• Static-safe packaging for protection
• Electra Store 5-year warranty card

Use Cases

This 7425 DIP NOR Gate suits many buyers. Hobbyists use it for digital clocks and games. Students learn logic gates with it. Engineers design alarm systems and counters. It works for data selectors and multiplexers. The strobe feature helps in timing circuits. It is great for control panels. Industrial users like the wide temperature range. The 7425 DIP NOR Gate is also good for test equipment. It fits in breadboards and PCBs. Beginners find it easy to use. Experts appreciate its reliability. This IC is a staple in digital design.

Who It's For

The 7425 DIP NOR Gate is for anyone building logic circuits. It helps makers, students, and pros. You can use it in school labs or workshops. It is perfect for prototyping and production. The strobe adds flexibility. This IC solves many design problems. It is a smart choice for your next project.

Order your 7425 DIP Dual 4-Input NOR Gate with Strobe today. Electra Store offers fast shipping and support. Build better circuits with this essential logic gate. Get yours now.
