74237 DIP 1-Of-8 Decoder / Demultiplexer With Address Latch, Active High Outputs

74237 DIP 1-Of-8 Decoder / Demultiplexer With Address Latch, Active High Outputs

The 74237 1-Of-8 Decoder is a high-performance logic IC. It decodes a 3-bit address to one of eight outputs. This DIP package includes an address latch. It is perfect for memory decoding and data routing. Engineers and hobbyists trust this chip for reliable operation.

This decoder uses active high outputs. That means outputs go high when selected. The built-in latch holds the address stable. This reduces external components. You get cleaner signal paths. It works with TTL logic levels. Use it in digital systems easily.

The 74237 1-Of-8 Decoder simplifies complex digital designs. It takes a three-bit binary input. Then it activates exactly one of eight outputs. The address latch stores the input value. This prevents glitches during address changes. You can update the latch with a strobe signal. This makes the chip very flexible. It works as a decoder or a demultiplexer. As a demultiplexer, it routes data to one output. The active high outputs are easy to use. They connect directly to other logic gates. You do not need inverters for most circuits. This saves board space and cost. The chip is built for speed. It handles high-frequency signals well. It is a standard part in the 74 series. You can find it in many textbooks. It is a proven design for education and industry.

Key Features

• 1-of-8 decoding with active high outputs for easy integration
• Integrated address latch reduces external wiring needs

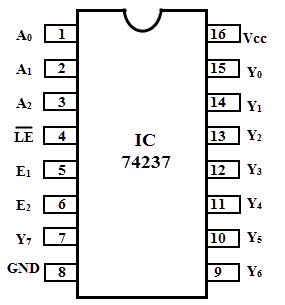

• Standard DIP-16 package fits breadboards and PCBs
• Compatible with 74 series TTL logic families
• Low power consumption for battery-powered projects
• Wide operating voltage range from 4.75V to 5.25V

What's Included

• One 74237 DIP 1-Of-8 Decoder IC
• Factory fresh in anti-static packaging
• Datasheet link available on request
• Bulk pricing options for quantity orders

Use Cases

Use this 1-Of-8 Decoder in microcontroller projects. It selects memory chips or peripherals. Build address decoders for retro computers. Create demultiplexers for data distribution. It also works in test equipment and industrial controls. Typical buyers include electronics students. They use it in lab experiments. Hobbyists build homebrew CPUs with it. Engineers design memory maps for embedded systems. It is also popular in robotics. The chip selects sensors or actuators. It works in LED matrix drivers too. Anyone building digital logic will find it useful. The 1-Of-8 Decoder is a core building block. It turns a few wires into many control lines. This simplifies wiring and debugging.

Who It's For

This product is for makers and professionals. If you design digital circuits, you need it. It helps students learn decoding logic. It helps engineers prototype quickly. It is also for repair technicians. They replace faulty decoders in old gear. The 74237 is a standard part. It is easy to source and stock. You can keep a few in your parts drawer. They are always useful for new projects.

Order the 74237 1-Of-8 Decoder today. Electra Store offers fast shipping and quality parts. Upgrade your project with this reliable IC. Click add to cart now. Your order ships within 24 hours. We guarantee authentic components. Build better circuits with the 74237 1-Of-8 Decoder. Do not wait. Get yours now.
