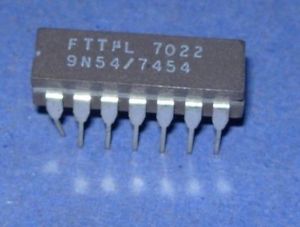

7454 DIP 4-Wide 2-Input AND-Or-Invert Gate

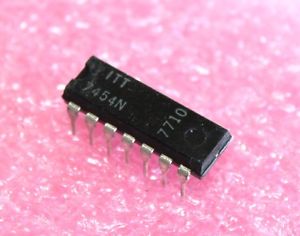

7454 DIP 4-Wide 2-Input AND-Or-Invert Gate

The 7454 DIP AND-Or-Invert Gate is a versatile logic IC from the 74 Series. It features four wide 2-input AND-OR-INVERT gates. This IC is ideal for complex logic designs. It suits hobbyists, students, and engineers. Build reliable circuits with this TTL gate.

This gate combines AND and OR functions with an inverter. It reduces the need for multiple chips. You get a compact solution for your projects. The DIP package makes it easy to use on breadboards. It works with standard 5V TTL logic.

The 7454 DIP AND-Or-Invert Gate performs advanced logic operations. It takes two inputs per gate. It then ANDs them together. Next it ORs the results from four gates. Finally it inverts the output. This creates a single high or low signal. You can build complex decision circuits. The gate handles multiple conditions at once. It is perfect for state machines. It also works well in data selectors. The 7454 DIP AND-Or-Invert Gate simplifies your design. It saves board space and reduces wiring. You get faster and cleaner logic. This IC is a powerful tool for any digital project.

Key Features

• Four independent 2-input AND-OR-INVERT gates in one package
• Standard DIP-14 package for easy breadboard and PCB use
• Compatible with 5V TTL logic levels for reliable operation
• Wide operating temperature range from 0°C to 70°C
• Low power consumption at just 10mW per gate typical
• Direct replacement for legacy 7454 ICs in existing designs

Use Cases

This gate is for anyone building digital logic. Hobbyists use it in home automation projects. Students learn Boolean algebra with it. Engineers design arithmetic units and control circuits. It is a staple in electronics labs. The 7454 DIP AND-Or-Invert Gate is also great for signal processing. It works in multiplexers and decoders. You can use it in alarm systems. It fits in educational kits too. Any project needing complex logic benefits from this IC. It is a must-have for your parts drawer.

Order the 7454 DIP AND-Or-Invert Gate now. Electra Store offers fast shipping and great prices. Upgrade your circuit designs today. Get this essential IC for your next project. Do not wait to start building. Click to add it to your cart. Your logic circuits will thank you.
