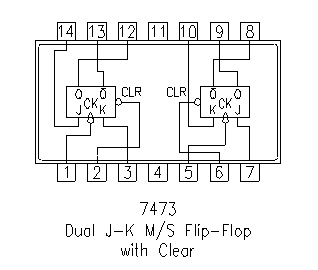

7473 DIP Dual J-K Flip-Flop With Clear

7473 DIP Dual J-K Flip-Flop With Clear

The 7473 DIP Dual J-K Flip-Flop With Clear is a high-performance integrated circuit. It belongs to the 74 Series family. This IC is perfect for digital logic projects. It features two independent J-K flip-flops. Each flip-flop has a clear input. Use it for counters, registers, and more. Hobbyists and engineers love its reliability.

This IC operates with a standard 5V supply. It offers fast switching speeds. The clear input resets the output instantly. You can cascade multiple flip-flops easily. It comes in a DIP-14 package. This makes it breadboard-friendly. Build complex circuits with ease.

The 7473 DIP Flip-Flop handles both clocked and asynchronous operations. Each flip-flop toggles on the negative edge of the clock. This design reduces glitches in your circuits. The clear input overrides all other inputs. It forces the output low immediately. You can chain several 7473 DIP Flip-Flop units together. This creates larger counters or shift registers. The IC works with standard TTL logic levels. It interfaces well with other 74 Series chips. Use it in state machines or data storage. The 7473 DIP Flip-Flop is a versatile building block for any digital system.

Key Features

• Two independent J-K flip-flops with individual clear inputs for flexible design.
• Standard 74 Series logic compatible with TTL voltage levels for easy integration.
• DIP-14 package ideal for prototyping on breadboards or PCBs.
• High noise immunity ensures stable operation in noisy environments.
• Wide operating temperature range from 0°C to 70°C for reliable performance.
• Low power consumption extends battery life in portable projects.

Use Cases

The 7473 DIP Dual J-K Flip-Flop With Clear is great for digital counters. Use it in frequency dividers or shift registers. It works well in educational kits. Students learn sequential logic with it. Engineers use it in control systems. It is a staple for any electronics lab. Hobbyists build clocks and timers with it. The 7473 DIP Flip-Flop also suits robotics projects. It handles debouncing switches or storing states. Beginners and experts alike find it easy to use. This IC is a must-have for your parts drawer.

Order the 7473 DIP Dual J-K Flip-Flop With Clear today. Electra Store offers fast shipping. Add it to your cart now. Build your next project with confidence. The 7473 DIP Flip-Flop delivers reliable performance every time. Do not wait. Get yours now and start creating.
