LM311 DIP VOLTAGE COMPARATOR WITH STROBE

LM311 Voltage Comparator

The LM311 voltage comparator is a high-speed IC designed for precision voltage comparison. With a typical response time of just 200 ns, it is perfect for applications requiring quick and accurate voltage detection. This versatile component is ideal for engineers and hobbyists alike, providing reliable performance in various electronic projects.

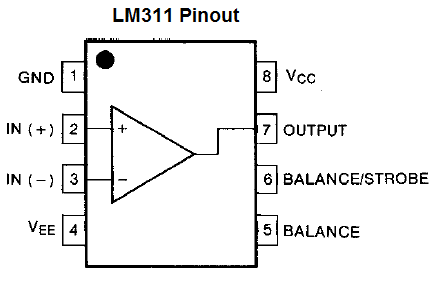

The LM311 voltage comparator excels in comparing two input voltages and producing a digital output based on the comparison. When the voltage at the inverting input exceeds that at the non-inverting input, the output switches states. This functionality is crucial in applications such as over-voltage protection, level shifting, and signal conditioning. The LM311 also features a strobe input, allowing users to enable or disable the comparator output, adding an extra layer of control. Its wide supply voltage range, from 5V to 30V, ensures compatibility with many systems, making it a flexible choice for diverse electronic designs. Packaged in a standard 8-pin DIP, the LM311 is easy to integrate into your designs.

Key Features

• High-speed response with 200 ns propagation delay
• Strobe input for flexible output control
• Operates from 5V to 30V supply voltage
• Open-collector output for wired-AND logic
• Low input bias current for accurate sensing

Use Cases

The LM311 is commonly used in timing circuits, voltage level detection, and signal conditioning applications. It is perfect for both professional engineers and DIY enthusiasts looking to enhance their electronic projects. Whether you are designing a simple voltage detector or a complex control system, the LM311 voltage comparator is an excellent choice. Its reliability and speed make it suitable for a wide range of applications, from automotive systems to industrial automation.

Don't miss out on the benefits of the LM311 voltage comparator. Its speed and versatility make it a must-have for your next project. Order today and experience the difference this exceptional component can make in your designs!
