LM7906

LM7906 Voltage Regulator

The LM7906 voltage regulator delivers a stable -5V output. It is perfect for powering analog circuits, audio gear, and industrial controls. This component ensures clean, reliable negative voltage. It works well with positive regulators like the LM7805. Build dual-supply systems with ease.

This LM7906 voltage regulator converts a negative input voltage into a precise -5V output. It filters out noise and voltage spikes. This makes it ideal for sensitive electronics. The device maintains output stability even with fluctuating loads. It uses advanced internal circuitry for low dropout performance. You get steady power for critical applications. The LM7906 voltage regulator is a workhorse for negative rail designs.

This regulator handles up to 1.5A of output current. It includes built-in thermal overload protection and short-circuit protection. The TO-220 package allows easy heatsink mounting. You get consistent performance even under load changes. It is a trusted choice for engineers and hobbyists.

Key Features

• Fixed -5V output with high accuracy and low ripple
• Output current up to 1.5A with proper heatsinking
• Built-in thermal shutdown and short-circuit protection
• Simple three-terminal design for easy integration

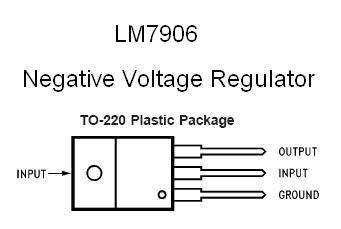

• Standard TO-220 package compatible with many boards
• Wide input voltage range from -7V to -25V

Use Cases

Use the LM7906 voltage regulator in dual-polarity power supplies for op-amps. It is great for audio preamplifiers, signal processors, and test equipment. It also works in battery chargers and sensor circuits. Any project needing a stable negative rail benefits from this part. Typical buyers include electronics hobbyists, lab technicians, and product designers. They build audio mixers, medical devices, and automation systems. The LM7906 voltage regulator solves negative voltage challenges simply.

Order the LM7906 voltage regulator today from Electra Store. We offer fast shipping and genuine components. Upgrade your power supply design with confidence. Get reliable -5V regulation for your next project. Stock is ready to ship now. Do not wait to complete your build. Buy the LM7906 voltage regulator and power your innovation.
