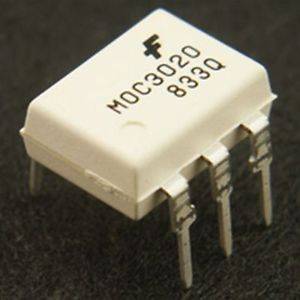

MOC3020 Optocoupler with Triac Driver Output (6-Pin DIP)

✅ Key Features:

• Random-Phase Triggering: Ensures reliable operation without the need for zero-crossing detection.

• High Isolation Voltage: Provides 5,000 Vrms isolation between input and output.

• Peak Blocking Voltage: Capable of withstanding up to 400V.

• Compact 6-Pin DIP Package: Facilitates easy integration into through-hole PCBs.

• UL and VDE Recognized: Meets international safety standards.

🔧 Specifications:

• Model: MOC3020

• Package: 6-Pin Dual In-Line Package (DIP)

• Input Control Current (IF): Typically 10 mA

• Trigger Current (IT): Typically 5 mA

• Peak Off-State Voltage (VDRM): 400V

• Isolation Voltage (Viso): 5,000 Vrms

• Operating Temperature Range: -40°C to +85°C

📦 Package Includes:

• 1 x MOC3020 Optocoupler (6-Pin DIP)

🧩 Typical Applications:

• AC Load Switching

• Solid-State Relays

• Motor Control Circuits

• Lighting Dimmers

• Home Automation Systems

• Microcontroller Interfacing with AC Devices

The MOC3020 offers a robust and efficient solution for isolating and controlling AC loads, ensuring safety and reliability in various electronic applications.
