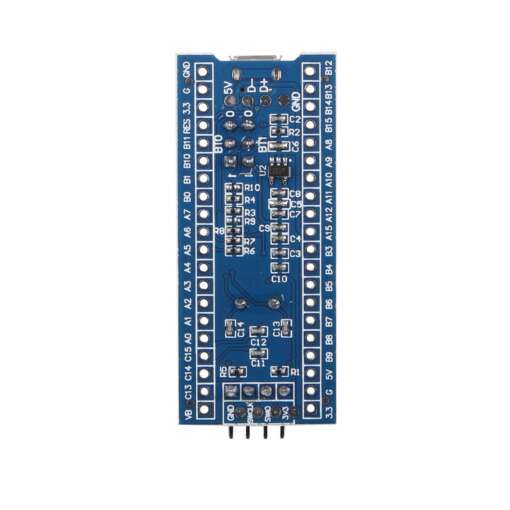

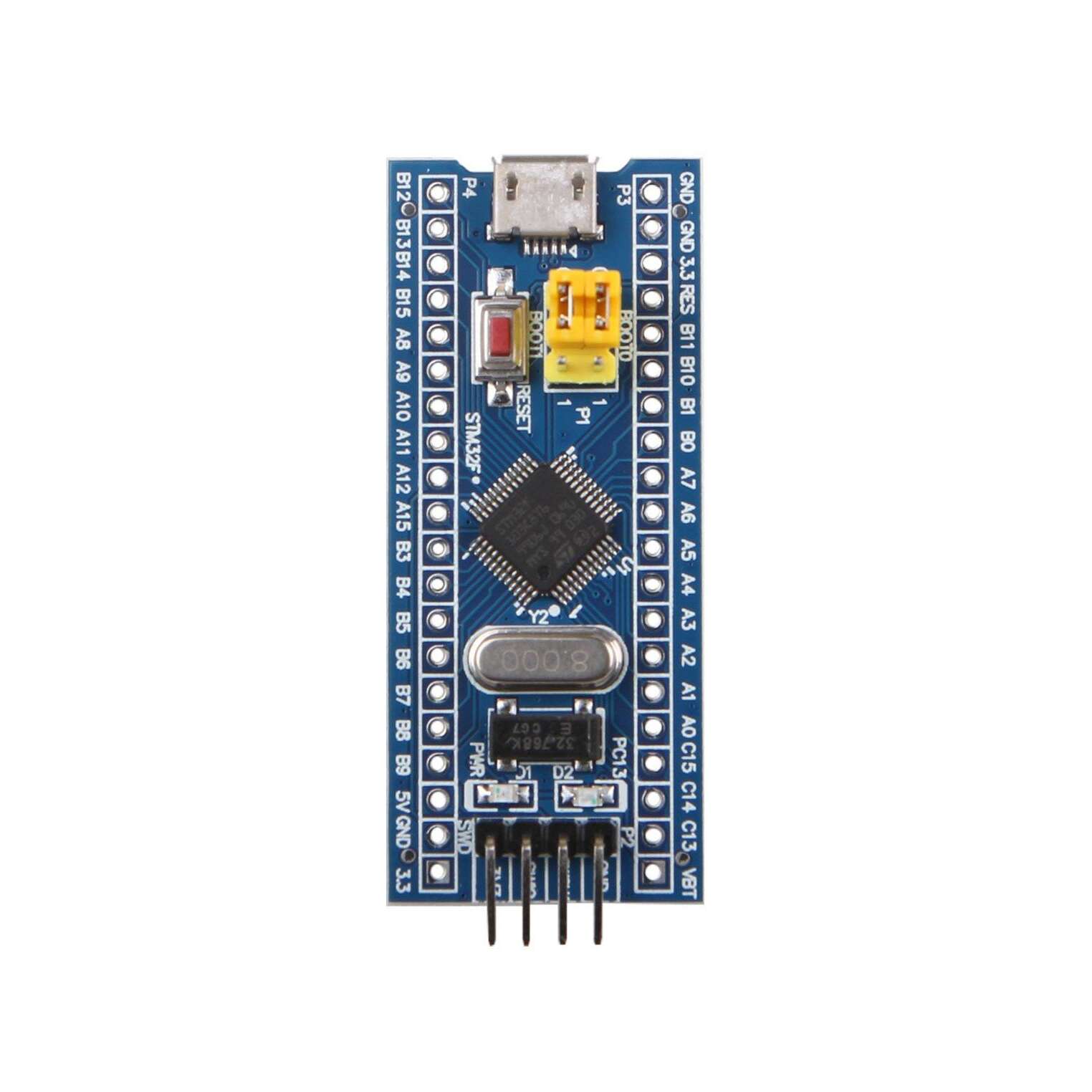

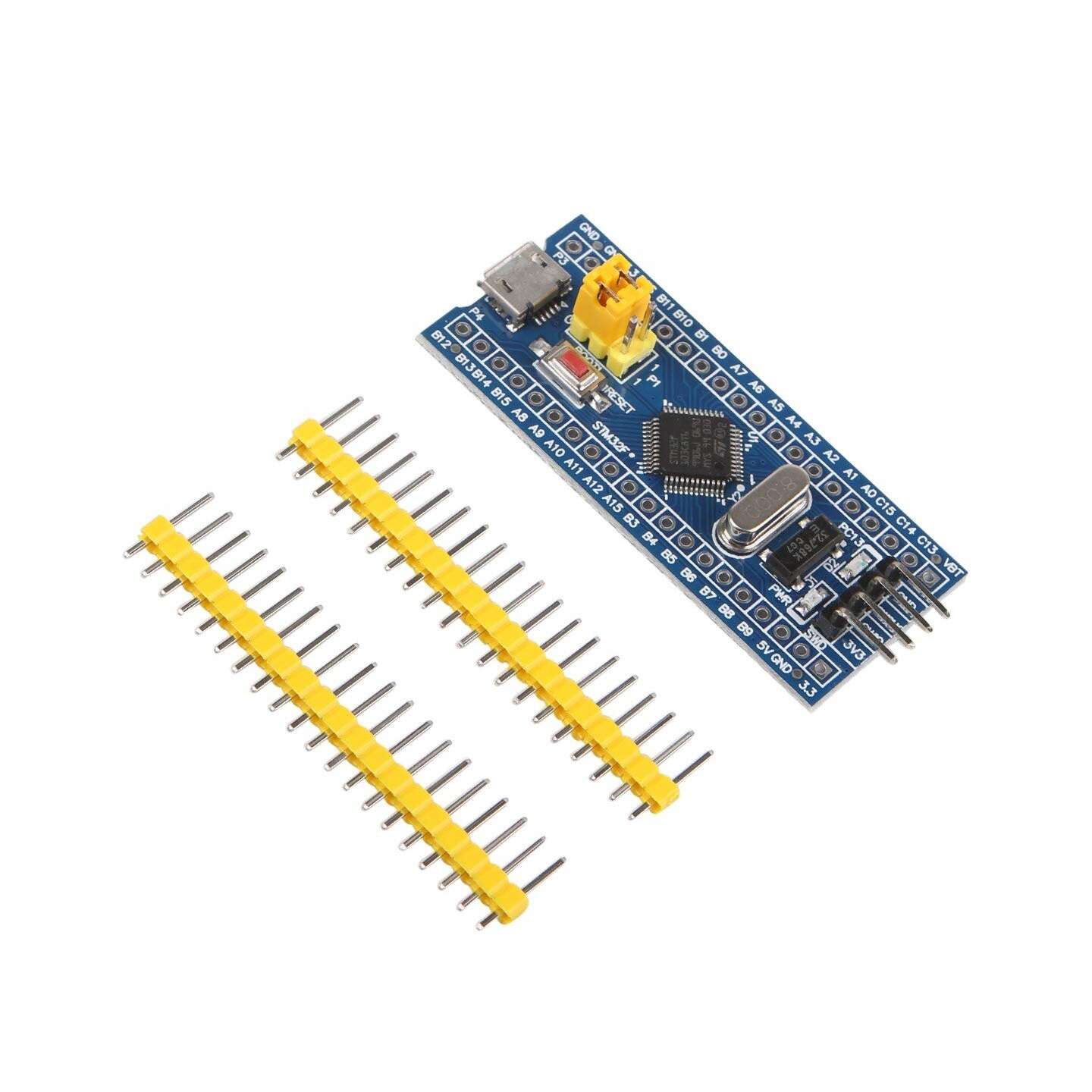

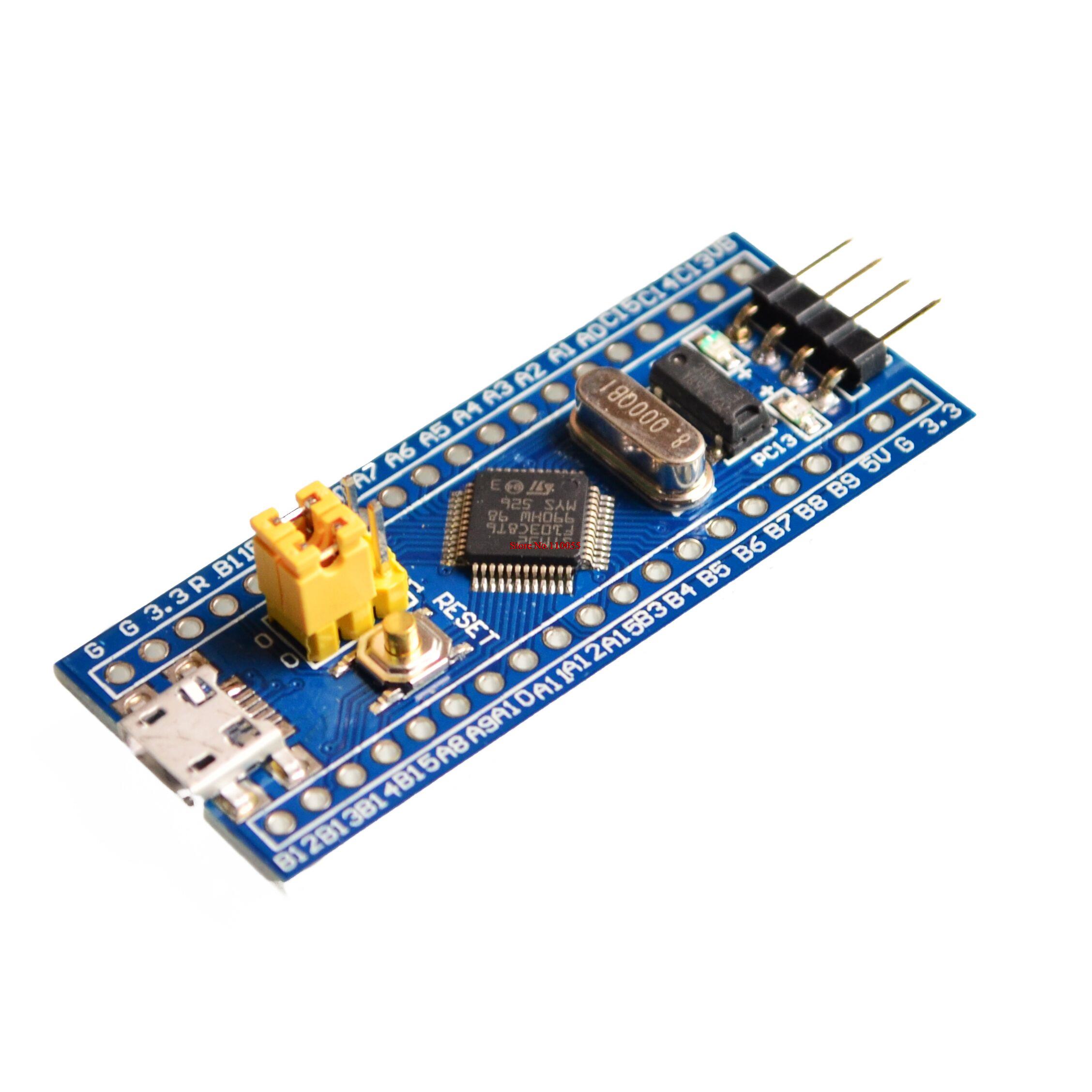

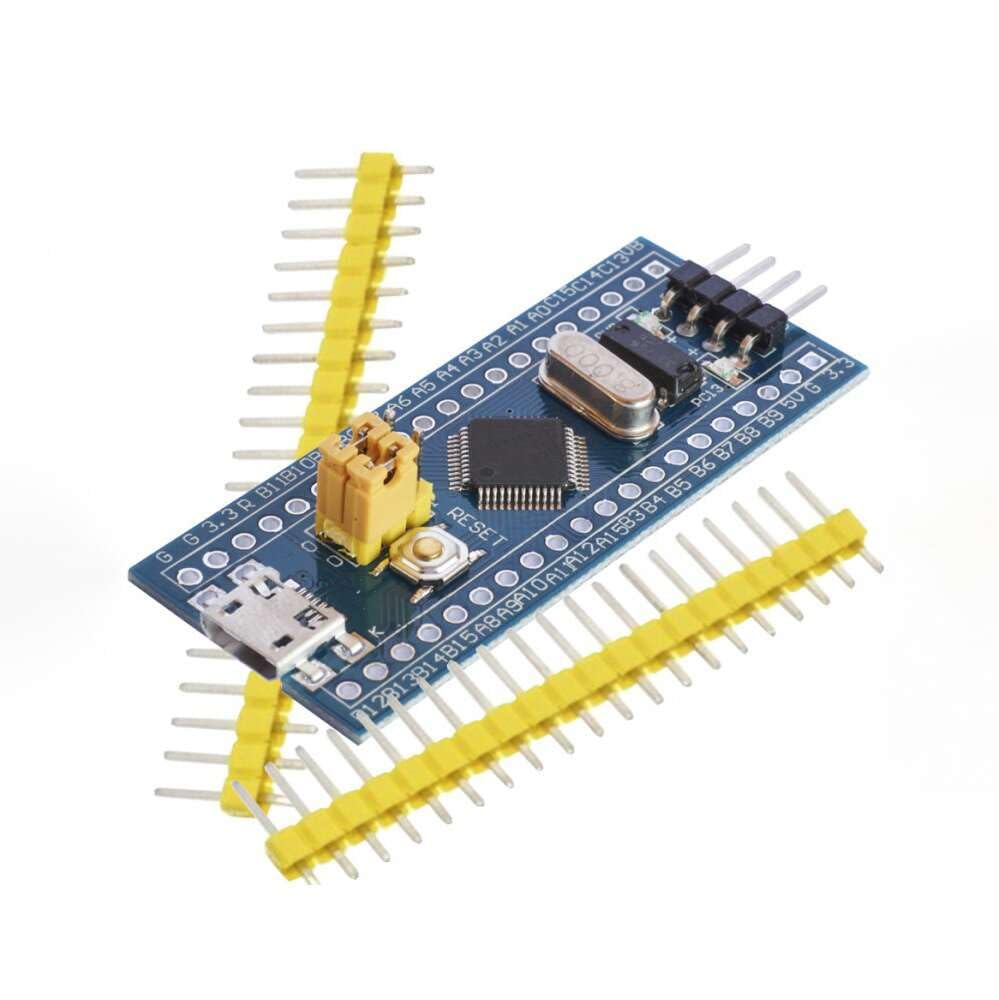

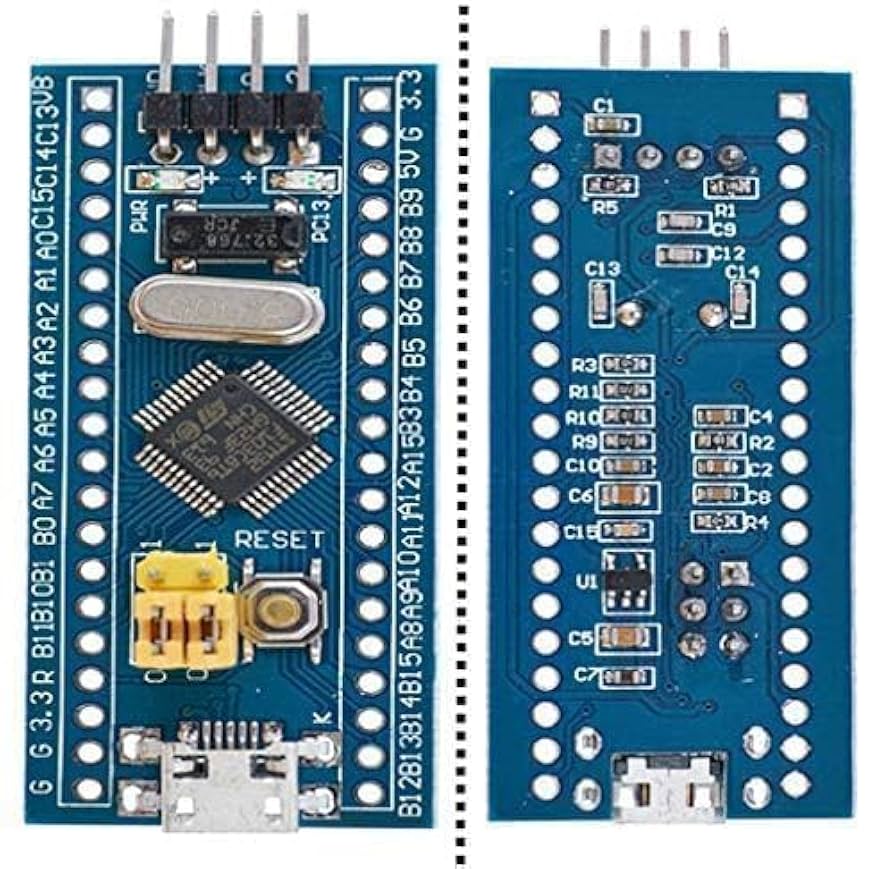

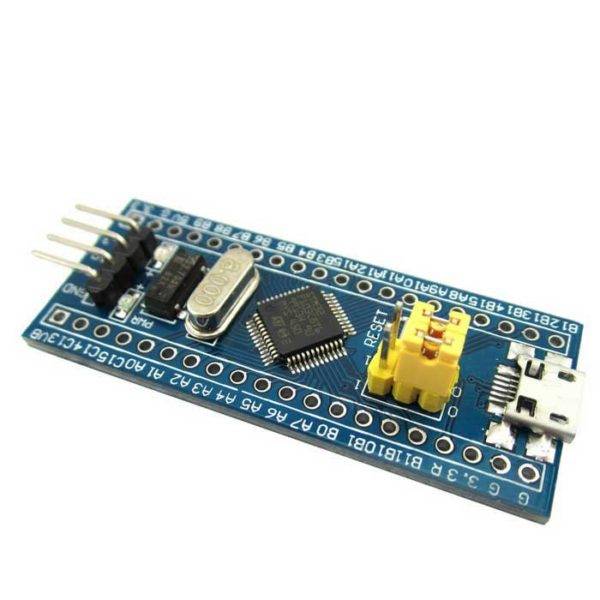

STM32F103C8T6 32-Bit ARM Development Board (The Blue Pill)

The STM32F103C8T6 Development Board, widely known as the “Blue Pill”, is one of the most popular low-cost ARM Cortex-M3 microcontroller boards. With its 32-bit ARM architecture, high processing speed, multiple peripherals, and affordability, it has become a favorite among electronics hobbyists, engineering students, and professional developers alike.

Built around the STM32F103C8T6 microcontroller from STMicroelectronics, this board offers excellent performance and versatility for a wide range of applications, from IoT systems and robotics to embedded systems and industrial automation.

Key Features of the STM32F103C8T6 (Blue Pill)

• ⚡ 32-bit ARM Cortex-M3 CPU – Runs at up to 72 MHz clock speed, offering higher performance than 8-bit microcontrollers like Arduino Uno.

• 💾 Memory – 64 KB Flash memory and 20 KB SRAM for program storage and execution.

• 🔌 Connectivity – Supports USART, SPI, I2C, CAN, and USB interfaces, making it ideal for communication-heavy projects.

• 📡 Rich I/O Support – 37 I/O pins, many of which can be configured as PWM, ADC, or digital I/O.

• 🎛️ Analog Inputs – 10-bit ADC with multiple channels for sensor interfacing.

• ⏱️ Timers and Counters – Multiple timers with advanced features for motor control and signal generation.

• 🔧 Low Power Consumption – Energy-efficient design for battery-powered devices.

• 🌐 Compact Form Factor – Small size makes it suitable for embedded and portable applications.

Technical Specifications

• Microcontroller: STM32F103C8T6

• Core: ARM Cortex-M3 32-bit RISC

• Operating Voltage: 3.3V (5V tolerant inputs)

• Clock Speed: 72 MHz

• Flash Memory: 64 KB

• SRAM: 20 KB

• I/O Pins: 37 GPIO pins

• Interfaces: USART, SPI, I2C, CAN, USB 2.0 FS

• ADC: 12-bit, 10 channels

• Timers: 3 general-purpose timers, 1 advanced control timer

• PWM Channels: Multiple available

• Dimensions: Compact and breadboard-friendly

Why Choose the Blue Pill STM32 Board?

Compared to Arduino boards like the Uno or Nano, the STM32 Blue Pill provides:

• ✅ Faster Processing – 72 MHz vs 16 MHz on Arduino Uno.

• ✅ More Memory – 64 KB Flash, 20 KB SRAM vs 32 KB Flash, 2 KB SRAM.

• ✅ Better Interfaces – Native USB, CAN, and more UARTs for complex communication.

• ✅ Lower Cost – Affordable compared to similar ARM development boards.

• ✅ Professional-Grade Applications – Suitable for both learning and production-level projects.

Applications of STM32F103C8T6 Development Board

Thanks to its performance and flexibility, the Blue Pill STM32 board is widely used in different fields:

1. IoT and Smart Devices

   • Data collection and wireless communication projects.

   • Integration with Wi-Fi modules (ESP8266/ESP32) and Bluetooth.

2. Robotics and Automation

   • Motor control using PWM timers.

   • Sensor-based decision making with ADC inputs.

3. Industrial Applications

   • CAN interface for automotive and industrial protocols.

   • Embedded controllers for machines and monitoring systems.

4. Educational Projects

   • Perfect for students learning ARM microcontrollers.

   • Hands-on experience in low-level embedded programming.

5. DIY Electronics

   • Makers and hobbyists use it for everything from custom gadgets to advanced controllers.

Programming and Development

The STM32 Blue Pill is compatible with multiple development environments:

• Arduino IDE – Beginner-friendly programming using familiar Arduino libraries.

• STM32CubeIDE – Official IDE for professional STM32 development.

• PlatformIO – Multi-platform environment for advanced projects.

• Keil uVision – Industry-standard ARM development tool.

Programmers can upload code using ST-Link programmers or via the USB interface. This flexibility makes it accessible to both beginners and professionals.

SEO Benefits – Who Should Buy This Module?

This module is perfect for:

• Electronics hobbyists exploring advanced microcontrollers.

• Engineering students working on robotics, IoT, and automation projects.

• IoT developers building cost-effective and powerful smart devices.

• Industrial engineers looking for affordable yet reliable ARM-based controllers.

By targeting keywords such as “STM32F103C8T6 development board,” “STM32 Blue Pill,” “ARM Cortex-M3 microcontroller board,” and “32-bit development board”, this description improves SEO ranking and attracts the right customers to your store.

Conclusion

The STM32F103C8T6 32-Bit ARM Development Board (Blue Pill) offers the perfect blend of power, affordability, and versatility. Whether you’re a student learning embedded systems, a hobbyist experimenting with IoT devices, or a professional developer designing industrial applications, this board provides the performance and features you need at a fraction of the cost. With wide community support, multiple programming options, and rich peripherals, the Blue Pill is an excellent choice for your next project.
