4069 DIP Hex Inverter

4069 DIP Hex Inverter

The 4069 DIP Hex Inverter is a versatile CMOS logic gate IC. It contains six independent inverter circuits. This chip is ideal for hobbyists and engineers. Use it in signal processing, oscillators, and digital logic projects. Electra Store offers high-quality components for your builds.

This hex inverter works with a wide voltage range. It consumes very little power. The DIP package makes it easy to use on breadboards. You can rely on its stable performance. It is a staple for any electronics workbench.

The 4069 DIP Hex Inverter performs a simple but vital task. It takes a logic high input and outputs a low. It takes a low input and outputs a high. This inversion is the basis of many circuits. You can chain multiple inverters together. This creates oscillators or pulse shapers. The chip works with both TTL and CMOS levels. It is very forgiving of voltage variations. You can use it in noisy environments. The 4069 DIP Hex Inverter is a true workhorse. It handles frequencies up to several megahertz. This makes it useful for audio and low-speed digital. Its low power draw is a major advantage. It draws only microamps when idle. This is perfect for battery gear. The chip also has built-in protection diodes. These prevent damage from static discharge. You can trust this IC for long-term projects.

Key Features

• Six independent inverter gates in one DIP-14 package
• Wide operating voltage from 3V to 15V
• Low power consumption for battery-powered projects
• High noise immunity ensures reliable operation
• Compatible with standard 40 series logic family
• Easy to solder and breadboard for prototyping

What's Included

• One 4069 DIP Hex Inverter IC
• Electra Store anti-static packaging

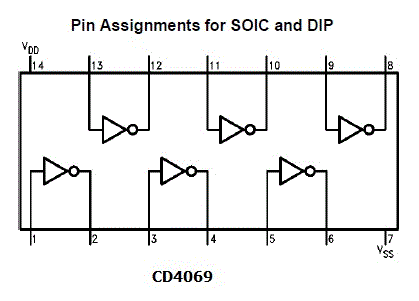

• Product datasheet with pinout diagram
• Guaranteed authentic 40 series component

Use Cases

Build digital clocks, pulse generators, or signal inverters. Use it in educational kits or industrial controls. The 4069 DIP Hex Inverter is perfect for creating logic gates. It also works in oscillator circuits. Hobbyists and professionals alike trust this IC. Typical buyers include students learning digital logic. They use it in breadboard experiments. Engineers use it for signal conditioning. It can clean up noisy digital signals. Repair technicians use it to replace failed inverters. It is also popular in audio effects pedals. Musicians use it to create distortion or phase shifts. The 4069 DIP Hex Inverter is a go-to for any logic project. It is also great for robotics and automation. You can use it to invert sensor signals. It works well with microcontrollers. This IC is a must-have for your parts bin.

Order your 4069 DIP Hex Inverter from Electra Store today. Get fast shipping and reliable components. Upgrade your project with this essential logic gate. Buy now and start building! This chip will solve your inversion needs. It is affordable and always in stock. Do not wait to complete your circuit. Click add to cart now. Your next project depends on the 4069 DIP Hex Inverter. Electra Store guarantees quality and performance. Order today and see the difference.
