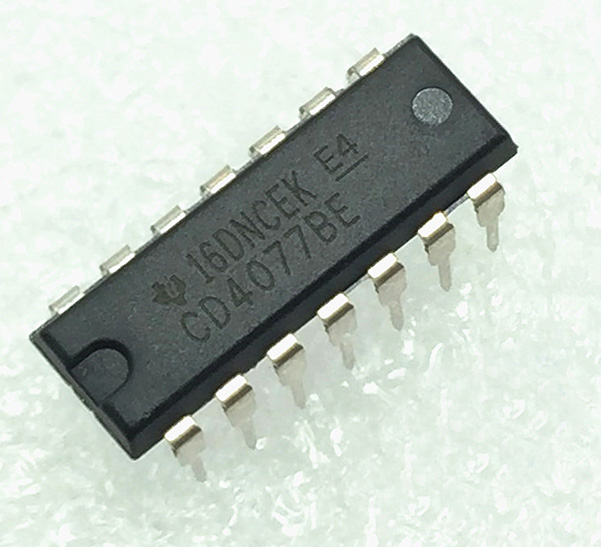

4077 DIP Quad 2-Input Xnor Gate

4077 Quad 2-Input Xnor Gate DIP IC

The Quad 2-Input Xnor Gate is a versatile CMOS logic IC. It contains four independent XNOR gates. Each gate has two inputs. This IC is ideal for digital circuits. It works well in comparators and parity checkers. Hobbyists and engineers love its reliability.

This 4077 DIP package is easy to use on breadboards. It operates on a wide voltage range. The IC consumes very little power. You can use it in battery-powered projects. It provides stable, consistent output. The Quad 2-Input Xnor Gate performs a logical equality check. It outputs a high signal when both inputs match. This makes it perfect for comparing binary values. It can also detect errors in data transmission. The gate works with both analog and digital signals. Its CMOS design ensures minimal heat generation. You can cascade multiple gates for complex logic. This IC is a building block for many systems. It handles high-speed switching with ease. The Quad 2-Input Xnor Gate is a reliable choice for precision tasks.

Key Features

• Four independent 2-input XNOR gates in one DIP package
• Wide operating voltage from 3V to 15V for flexibility
• Low power consumption ideal for portable electronics

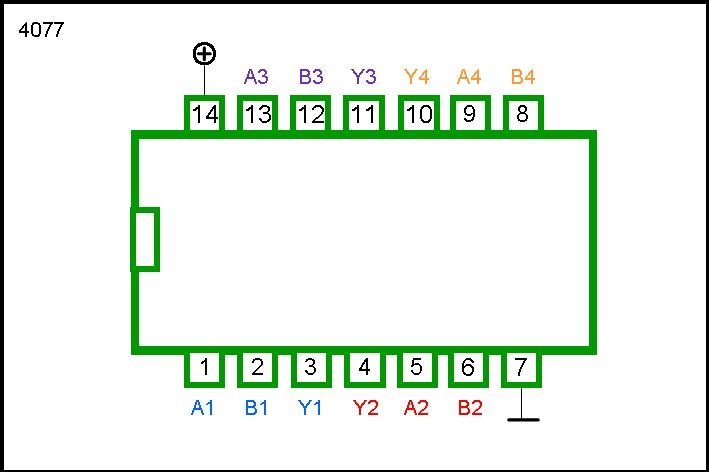

• Standard DIP-14 pinout for easy prototyping
• High noise immunity ensures reliable performance
• Compatible with TTL and CMOS logic families

Use Cases

Use this gate in digital comparators and error detection. It is perfect for educational kits and DIY projects. Engineers use it in signal processing and control systems. It is a staple in any logic lab. Typical buyers include students, hobbyists, and professionals. Students learn basic logic with this IC. Hobbyists build custom circuits at home. Engineers integrate it into industrial designs. The Quad 2-Input Xnor Gate is also great for robotics. It helps compare sensor inputs accurately. You can use it in security systems too. It verifies matching codes or patterns. This IC is a must-have for any electronics enthusiast. It supports both learning and advanced applications.

Order your Quad 2-Input Xnor Gate from Electra Store today. Get fast shipping and top-quality components. Build better circuits with this reliable 4077 IC. The Quad 2-Input Xnor Gate is in stock now. Add it to your cart for quick delivery. Start your next project with confidence. This IC will save you time and effort. Buy now and enjoy premium performance. Electra Store guarantees satisfaction on every order.
