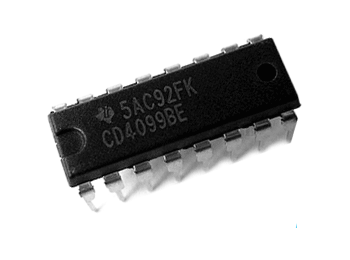

4099 DIP 8-Bit Addressable Latch

4099 DIP 8-Bit Addressable Latch

The 4099 DIP 8-Bit Addressable Latch is a versatile CMOS IC. It stores and outputs 8 bits of data. This 8-bit addressable latch is ideal for digital electronics. Hobbyists and engineers love its reliability. It works with microcontrollers and logic circuits.

This latch has eight addressable latches. Each latch can be set or reset individually. You can also clear all latches at once. It uses a 3-bit address to select a latch. This makes it perfect for expanding outputs. The IC runs on a wide voltage range.

Think of the 4099 DIP 8-Bit Addressable Latch as a smart switch box. You send a three-bit address to pick one of eight outputs. Then you set that output high or low. It holds that state until you change it. This is great for controlling many devices with few wires. The master reset pin clears everything instantly. This saves time and code in complex projects. The 8-bit addressable latch works with 5V and 12V systems. It is very forgiving of power fluctuations. This makes it a robust choice for prototypes. You can use it to drive LEDs, relays, or other ICs. Its CMOS design draws very little current. This is perfect for battery-powered gadgets. The 4099 DIP 8-Bit Addressable Latch is a workhorse for digital control.

Key Features

• Eight individually addressable latches for flexible data storage
• Wide operating voltage from 3V to 15V for various projects
• Standard DIP-16 package for easy breadboard and PCB use
• Low power consumption typical of CMOS technology
• Direct interface with TTL and CMOS logic families
• Master reset function to clear all latches quickly

What's Included

• One 4099 DIP 8-Bit Addressable Latch IC
• Anti-static foam for safe storage

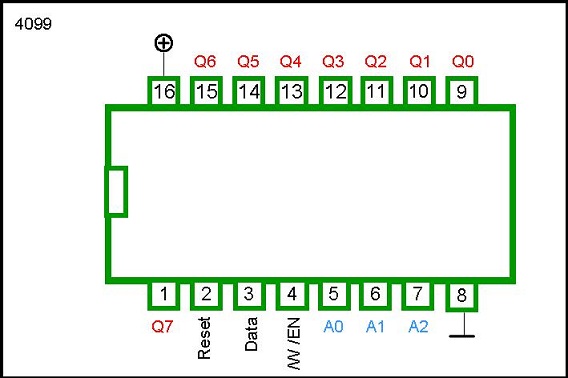

• Product datasheet with pinout and truth table
• Electra Store quality guarantee card

Use Cases

Use this 8-bit addressable latch in LED displays. It works great for relay control. It is also used in memory expansion. Students and makers use it in labs. It is a key part of many digital designs.

Typical buyers are electronics hobbyists and students. Engineers also buy this chip for prototypes. It is popular in robotics and automation projects. Teachers use it to demonstrate digital logic. Makers use it to control multiple outputs from one microcontroller pin. The 4099 DIP 8-Bit Addressable Latch is perfect for anyone learning digital electronics. It is also great for experienced designers who need a simple output expander. You can use it in home automation or art installations. It works well in any project that needs extra control lines.

Order the 4099 DIP 8-Bit Addressable Latch now. This 8-bit addressable latch boosts your project. Get fast shipping from Electra Store. Upgrade your circuit today! Don't wait. Add this 8-bit addressable latch to your cart now. It will make your next build easier and more powerful. Order now and start building!
