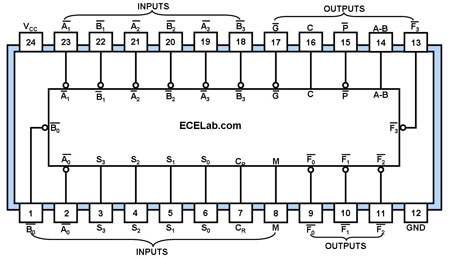

74181 DIP 4-Bit Arithmetic Logic Unit AND Function Generator

74181 DIP 4-Bit Arithmetic Logic Unit

The 74181 ALU is a versatile 4-bit Arithmetic Logic Unit designed for various applications. It performs 16 arithmetic operations, including addition, subtraction, and comparison. This makes it an ideal choice for engineers and hobbyists working on digital circuits. With its compact design, it fits easily into any project. The 74181 ALU provides a robust solution for implementing complex calculations while maintaining simplicity in design.

This ALU supports all 16 logic operations for two variables. It includes functions like AND, OR, and NAND. The full lookahead feature ensures high-speed arithmetic operations on long words. Input clamp diodes protect against voltage spikes, enhancing reliability. The 74181 ALU is engineered for efficiency, allowing users to perform calculations rapidly without compromising accuracy. Its ability to execute multiple functions makes it a valuable component in any digital system.

Key Features

• Performs 16 arithmetic operations
• Supports 16 logic operations
• High-speed arithmetic with lookahead
• Input clamp diodes for protection
• Compact DIP package for easy integration
• Low power consumption for extended use

Use Cases

The 74181 ALU is perfect for digital circuit design, robotics, and educational projects. It is widely used in various applications, from simple calculators to complex computing systems. Typical buyers include electronics students, hobbyists, and professional engineers who require a reliable arithmetic logic unit for their projects. Whether you are building a prototype or integrating it into an existing system, the 74181 ALU offers the flexibility and performance needed for success.

Order the 74181 ALU today and enhance your projects with its powerful capabilities. This unit is essential for anyone looking to implement advanced arithmetic functions in their designs. Don't miss out on the opportunity to elevate your digital projects with the reliable and efficient 74181 ALU. Act now and experience the difference it can make!
