7420 DIP Dual 4-Input NAND Gate

7420 DIP Dual 4-Input NAND Gate

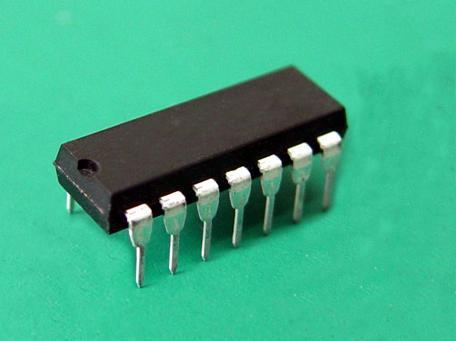

The 7420 DIP Dual 4-Input NAND Gate is a classic 74 Series TTL integrated circuit. It contains two independent 4-input NAND gates. This IC is perfect for digital logic projects. Hobbyists and engineers trust it for reliable performance. It works well in breadboards and PCBs.

This NAND gate operates from 4.75V to 5.25V. It offers fast switching speeds. The dual gate design saves space. You get two gates in one package. This simplifies your circuit layout. It is ideal for combinational logic.

The 7420 DIP NAND Gate performs the NAND function on four inputs. It outputs a low signal only when all inputs are high. This makes it a universal gate. You can build any logic function with it. The dual package gives you two gates. This reduces component count. It also lowers wiring complexity. The 7420 DIP NAND Gate uses standard TTL levels. It works with other 74 Series chips. You can use it in counters, decoders, and more. Its fast switching helps in high-speed designs. The IC is robust and durable. It handles noise well. This ensures stable operation in many environments. The 7420 DIP NAND Gate is a trusted choice for digital electronics.

Key Features

• Two independent 4-input NAND gates in a single DIP-14 package
• Standard TTL logic levels for easy integration with other 74 Series ICs
• Wide operating voltage range of 4.75V to 5.25V
• High noise immunity ensures stable operation in noisy environments
• Compatible with breadboards and prototyping boards for quick testing
• Low power consumption for battery-powered projects

Use Cases

Use the 7420 DIP Dual 4-Input NAND Gate in digital counters, decoders, and arithmetic circuits. It is great for educational kits and DIY electronics. Build logic gates, flip-flops, or oscillators. This IC is a staple for any electronics enthusiast. Typical buyers include students learning digital logic. Hobbyists building custom circuits also choose it. Engineers use it in prototypes and production. The 7420 DIP NAND Gate fits many projects. It works in alarm systems and timers. You can use it in data processing units. It is also common in control systems. Anyone needing reliable logic should consider it. The 7420 DIP NAND Gate offers versatility and value.

Order your 7420 DIP Dual 4-Input NAND Gate today from Electra Store. We offer fast shipping and quality components. Upgrade your project with this reliable NAND gate. Buy now and start building! The 7420 DIP NAND Gate is ready to ship. Get yours today and see the difference.
