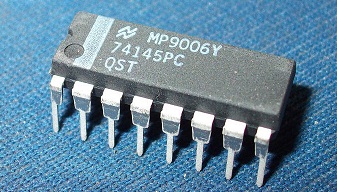

74145 DIP BCD To Decimal Decoder / Driver

74145 DIP BCD To Decimal Decoder / Driver

The 74145 BCD to Decimal Decoder is a key IC for digital electronics. It converts BCD input into decimal outputs. This 16-pin DIP driver is perfect for driving 7-segment displays. Hobbyists and engineers use it in counters and clocks. It simplifies complex logic circuits.

This decoder works with TTL logic levels. It sinks current to drive loads directly. Each output goes low when selected. The chip handles up to 80 mA per output. It is reliable and easy to use. You can integrate it into many designs.

The 74145 BCD to Decimal Decoder takes a four-bit binary coded decimal input. It then activates one of ten output lines. This action makes it a true one-of-ten decoder. The active-low outputs are ideal for driving LEDs or relays. You do not need extra driver transistors. This saves board space and reduces cost. The chip also includes built-in protection diodes. These prevent damage from inductive loads. The 74145 BCD to Decimal Decoder is a robust solution for digital systems. It works reliably in noisy environments. Its high current drive means you can control lamps directly. This makes it a versatile choice for many projects.

Key Features

• 16-pin DIP package for easy breadboard use
• Converts 4-bit BCD to 10 decimal outputs
• High current sinking capability up to 80 mA
• Active-low outputs for direct display driving
• Compatible with standard TTL logic families
• Wide operating temperature range for industrial use

What's Included

• One 74145 BCD to Decimal Decoder IC
• Anti-static protective packaging

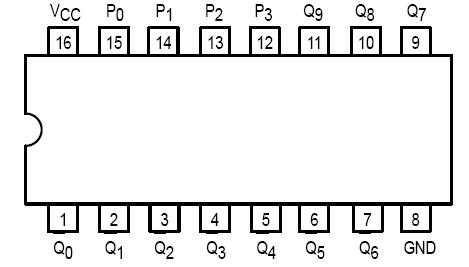

• Pinout diagram for quick reference
• Electra Store quality guarantee

Use Cases

Build digital counters, clocks, and voltmeters with this decoder. It works in test equipment and control panels. Students learn digital logic with it. Engineers prototype quickly. It is a staple in 74 series projects. Typical buyers include electronics hobbyists and students. They use it in classroom labs and home workshops. Professional engineers also rely on it. They integrate it into industrial control systems. The 74145 BCD to Decimal Decoder is perfect for driving numeric displays. It also works well in relay control circuits. You can use it in vending machines or scoreboards. Its high current output makes it ideal for lamp drivers. Anyone building a digital project will find this IC useful.

Order the 74145 BCD to Decimal Decoder today. Electra Store ships fast. Add this essential IC to your kit. Start your next project now! Do not wait. Get your 74145 BCD to Decimal Decoder from Electra Store today. It will make your design work easier. You will save time and effort. Click to order and build something great.
