7438 DIP Quad 2-Input NAND Buffer With Open Collector Outputs

7438 DIP Quad 2-Input NAND Buffer With Open Collector Outputs

The 7438 DIP Quad 2-Input NAND Buffer is a reliable logic IC from the 74 series. It features open collector outputs for wired-OR connections. This NAND buffer is perfect for engineers and hobbyists building digital circuits. It offers high noise immunity and low power consumption. Use it in TTL logic designs.

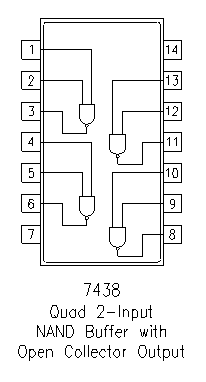

This buffer integrates four independent 2-input NAND gates. Each gate has an open collector output. This allows multiple outputs to drive a common line. It simplifies complex logic functions. The 7438 operates from a standard 5V supply. It is ideal for prototyping and production.

The 7438 NAND buffer expands your design options significantly. It handles high current loads with ease. The open collector outputs let you connect multiple gates together. This creates a wired-OR configuration without extra parts. The NAND buffer also drives LEDs, relays, and other devices. It works as a level shifter between different logic families. The robust design ensures stable operation in noisy environments. Each gate provides a clean logic output every time. The NAND buffer is a versatile building block for any digital project. You can use it for signal inversion or buffering. It reduces component count in complex circuits. The 7438 is a trusted choice for reliable performance.

Key Features

• Four independent 2-input NAND gates with open collector outputs
• Standard 74 series TTL logic for easy integration
• Low power consumption keeps your circuits efficient
• High noise immunity ensures stable operation in harsh conditions
• DIP-14 package fits breadboards and PCBs perfectly
• Wide operating temperature range from 0°C to 70°C

Use Cases

Engineers use the 7438 NAND buffer in digital logic circuits. It is great for creating wired-OR connections. Hobbyists build clock dividers and control systems with it. It works well in educational projects and industrial controllers. This NAND buffer is also ideal for bus systems. It drives multiple inputs from a single output. Students learn TTL logic with this reliable chip. Designers use it in memory address decoding. The 7438 fits into automation and robotics projects. It is a must-have for any electronics workbench.

Order your 7438 DIP Quad 2-Input NAND Buffer today. This NAND buffer delivers reliable performance for your projects. Fast shipping and a 5-year warranty included. Upgrade your circuit designs now. The NAND buffer is ready to ship immediately. Get yours and start building better circuits today.
